ST-246 Twin Disc Clutch Kit
InfoVehicle Info Needed
TILTONPART NUMBER: 454-55-1000

ST-246 Twin Disc Clutch Kit

$1,55125
ShippingShips on 12/02/2026
Lowest PriceLowest Price Guarantee

Items You Need

Blue Bolt Locker Medium Strength

JEGS

Blue Bolt Locker Medium Strength

Part Number : 555-28084
$699$7.99
You Save$1.00
Brake and Parts Cleaner [14 oz. Aerosol Can]

JEGS

Brake and Parts Cleaner [14 oz. Aerosol Can]

Part Number : 555-72312
$699$7.99
You Save$1.00
60 LED Work Light

JEGS

60 LED Work Light

Part Number : 555-81927
$2399$31.99
You Save$8.00
Disposable Shop Towels

JEGS

Disposable Shop Towels

Part Number : 555-80187
$1999$21.99
You Save$2.00

GM
Organic Discs
ST-246 Twin Disc Clutch Kit
  • 2014-2019 Chevy Corvette C7
  • 2016-Up Chevy Camaro Gen 6
  • Sprung-Hub Organic Discs
  • 246 mm (9.700 in.) Disc Diameter
  • 850 ft-lbs. Torque Capacity
  • 48.300 lbs.

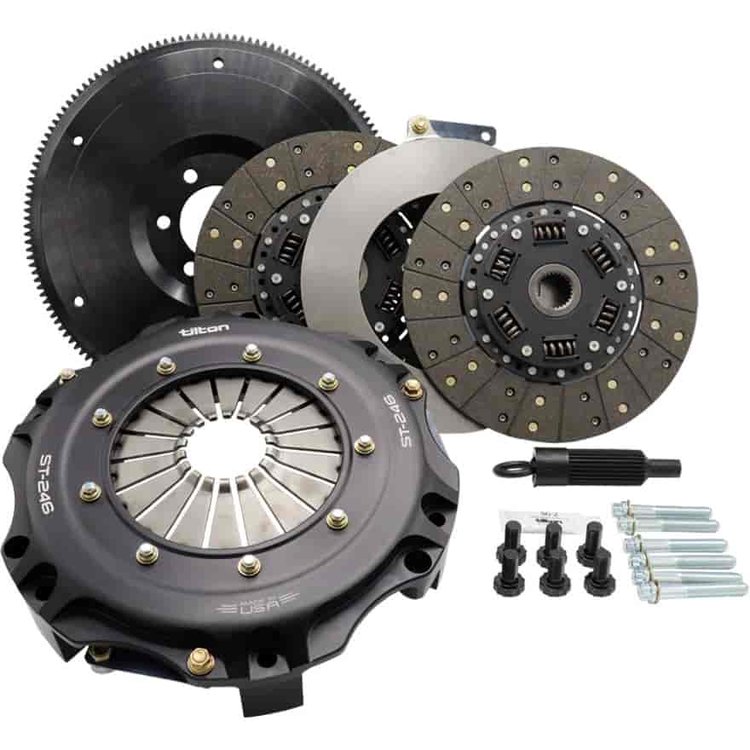

    ST-246 Twin Disc Clutch Kit Includes:

    • Clutch
    • Sprung-Hub Organic Discs
    • Billet Chromoly Steel Flywheel
    • Clutch Bolts
    • Flywheel Bolts
    • Alignment Tool
    • Spline Grease

    Installation Notes:

    Works with OEM Release Bearings

    • Improve Shift Times and Increase Clutch Life

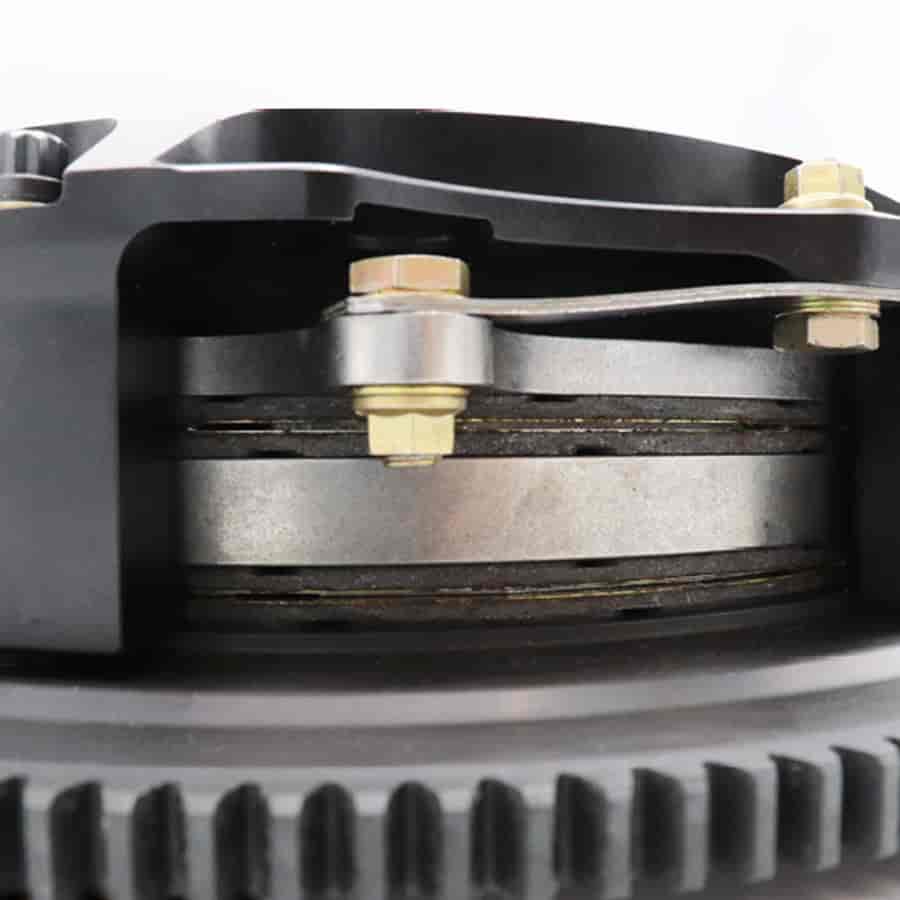

      For over 50 years, Tilton has been building state-of-the-art clutches for serious racing enthusiasts. The ST-246 Clutch Kit is engineered from the ground up as a true high-performance twin-disc system that will outperform any competition. Each clutch features heavy-duty straps to minimize noise from the pressure plate and floater plate. They are available with either sprung-hub organic discs for street or solid-hub cerametallic discs for street/strip applications.

    Part TypeClutch Kit
    Product LineTilton ST-246 Twin Disc Clutch Kits
    BrandTILTON
    Package Height8.0
    Package Width15.0
    Package Length15.0
    Weight51.0 PG
    Part CategoryPerformance Parts
    Disc StyleFull Face
    Number Of DiscsDouble
    Pressure Plate StyleDiaphragm
    Throwout Bearing IncludedNo
    Hub StyleSprung
    QuantitySold as a kit
    Mounting Hardware IncludedYes
    Counterweight AssistNo
    Clutch UsagePerformance
    Torque Capacity (Lbs.)850
    Flywheel IncludedYes
    Pilot Bushing IncludedNo
    Flywheel MaterialChrome Moly
    Disc Diameter (Mm)246
    Input Spline Quantity26 in (660.4 mm)
    Disc Diameter9.7 in (246.38 mm)
    Input Shaft Diameter1.156 in (29.362 mm)
    Disc MaterialOrganic
    Part FitmentSemi Universal
    Alignment Tool IncludedYes
    Vendor Part Number55-1000
    Package Qty1
    Package TypeEA
