ST-246 Twin Disc Clutch Kit
InfoVehicle Info Needed
TILTONPART NUMBER: 454-55-2003

ST-246 Twin Disc Clutch Kit

$1,57675
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

Ford
Cerametallic Discs
ST-246 Twin Disc Clutch Kit
  • Ford Small Block Internally Balanced V8
  • With Tremec T56 Magnum or TKO Transmission
  • Solid-Hub Cerametallic Discs
  • 246 mm (9.700 in.) Disc Diameter
  • 1250 ft-lbs. Torque Capacity
  • 47.700 lbs.

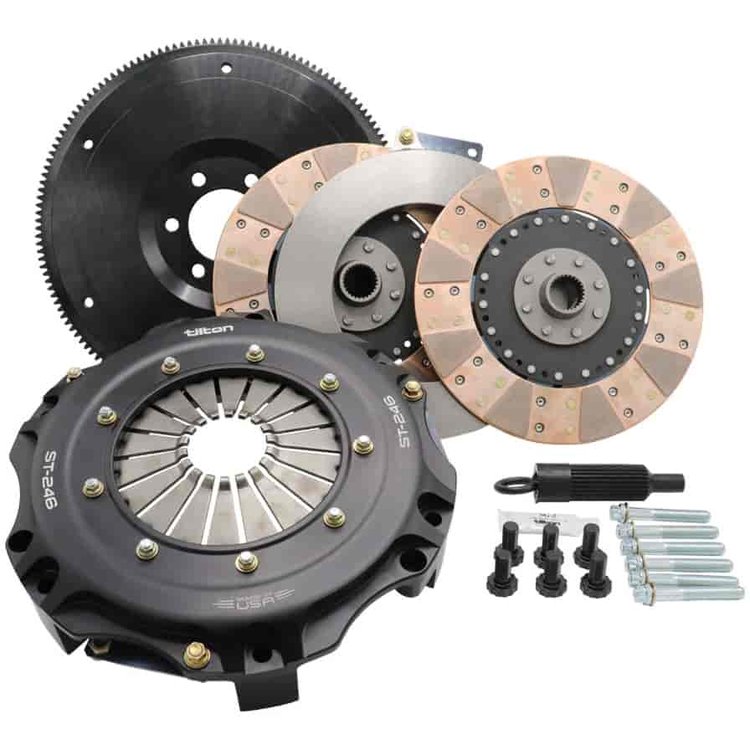

    ST-246 Twin Disc Clutch Kit Includes:

    • Clutch
    • Solid-Hub Cerametallic Discs
    • Billet Chromoly Steel Flywheel
    • Clutch Bolts
    • Flywheel Bolts
    • Alignment Tool
    • Spline Grease

    Installation Notes:

    Works with OEM Release Bearings

    • Improve Shift Times and Increase Clutch Life

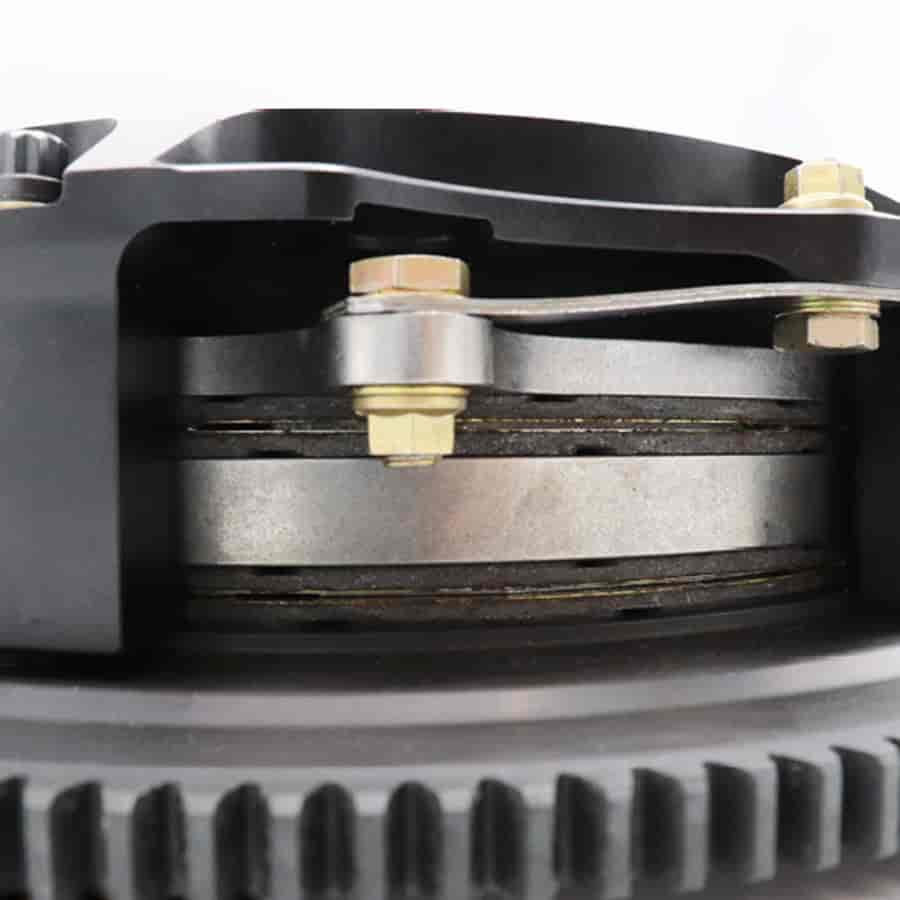

      For over 50 years, Tilton has been building state-of-the-art clutches for serious racing enthusiasts. The ST-246 Clutch Kit is engineered from the ground up as a true high-performance twin-disc system that will outperform any competition. Each clutch features heavy-duty straps to minimize noise from the pressure plate and floater plate. They are available with either sprung-hub organic discs for street or solid-hub cerametallic discs for street/strip applications.

    Part TypeClutch Kit
    Product LineTilton ST-246 Twin Disc Clutch Kits
    BrandTILTON
    Package Height1.5
    Package Width8.0
    Package Length15.0
    Weight51.0 PG
    Part CategoryPerformance Parts
    Disc StyleFull Face
    Number Of DiscsDouble
    Pressure Plate StyleDiaphragm
    Throwout Bearing IncludedNo
    Hub StyleSolid
    QuantitySold as a kit
    Mounting Hardware IncludedYes
    Counterweight AssistNo
    Clutch UsagePerformance
    Torque Capacity (Lbs.)1250
    Flywheel IncludedYes
    Pilot Bushing IncludedNo
    Flywheel MaterialChrome Moly
    Disc Diameter (Mm)246
    Input Spline Quantity26 in (660.4 mm)
    Disc Diameter9.7 in (246.38 mm)
    Input Shaft Diameter1.125 in (28.575 mm)
    Disc MaterialCerametallic
    Part FitmentSemi Universal
    Alignment Tool IncludedYes
    Vendor Part Number55-2003
    Package Qty1
    Package TypeEA
