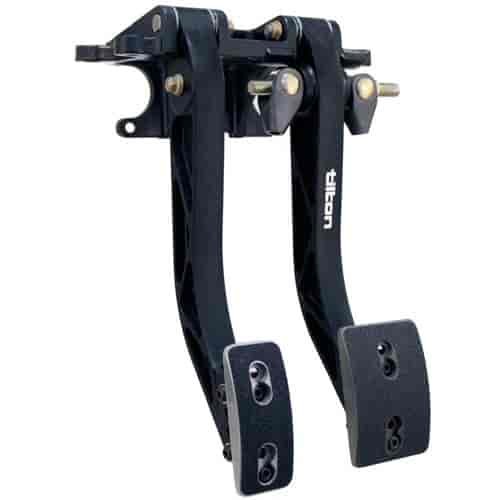

2-Pedal Firewall Mount Assembly Clutch/Brake Configuration

Name: 2-Pedal Firewall Mount Assembly Clutch/Brake Configuration
Brand: TILTON
SKU: 454-72-607
Price: 335.75 USD
Availability: InStock

^$335⁷⁵

6 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Firewall Mount

Clutch/Brake Configuration

Features:
Forged aluminum pedals.
Lightweight aluminum frame.
Adjustable pedal ratio (5.0:1 - 6.2:1).
Ability for the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences.
Traditional fixed-mount master cylinder.

Tilton strives to produce the best racing parts and service for drivers and racing teams. Their 600-Series racing pedal assemblies are perfect for the racing enthusiast needing more room in the cockpit. The space-saving design gives the most foot room for optimum performance. Lightweight yet strong to handle the most extreme conditions. Available in multiple assembly configurations to suit any driving style.

Features:

Fully optimized for strength and weight using Finite Element Analysis (FEA).
Traditional balance bar and fixed mounted master cylinder design.
Large diameter 7/16" balance bar minimizes flex to provide a solid pedal feel/response. PTFE coated aluminum clevises for increase durability and reduced friction.
Oil-impregnated bronze bushing at pedal pivots.
Adjustable Aluminum pedal pads.

Part TypePedal Pad

Product LineTilton 600-Series Racing Pedal Assemblies

BrandTILTON

Package Height7.2

Package Width9.4

Package Length19.2

Weight6.36 PG

Part CategoryPerformance Parts

Part FitmentUniversal

Vendor Part Number72-607

Package Qty1

Package TypeEA
