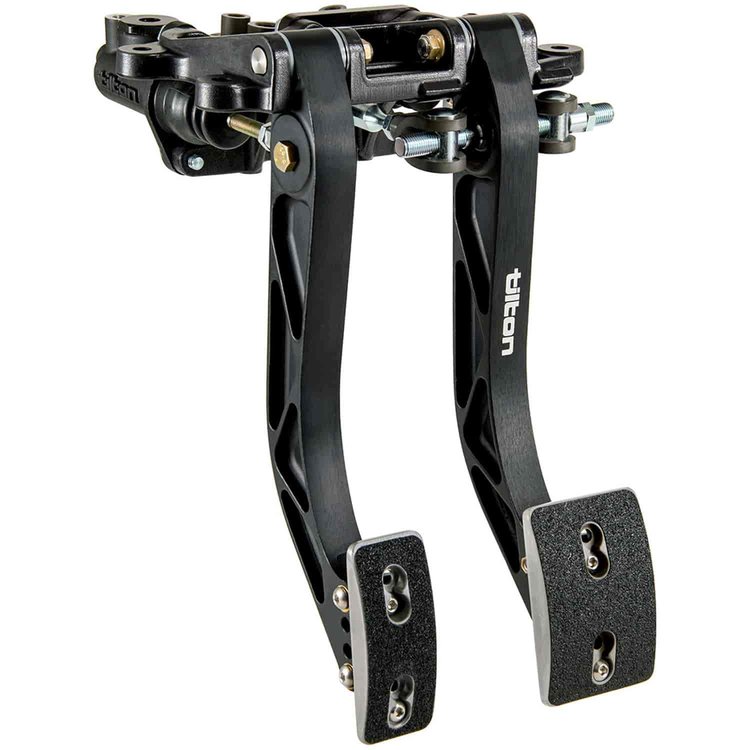

800-Series 2-Pedal Assembly Firewall Mount

Name: 800-Series 2-Pedal Assembly Firewall Mount
Brand: TILTON
SKU: 454-72-807
Price: 565.25 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Firewall Mount

Firewall Mount

Tilton's 800-Series firewall-mount pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.
Features:
High-efficiency balance bar and pivot-mount master cylinder design
Forged aluminum pedals are engineered for high rigidity and low weight.
Adjustable pedal ratios (5.0:1 - 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
Large diameter 7/16"-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping, decreasing friction and improving brake repeatability.
Note: Master cylinders are sold separately
