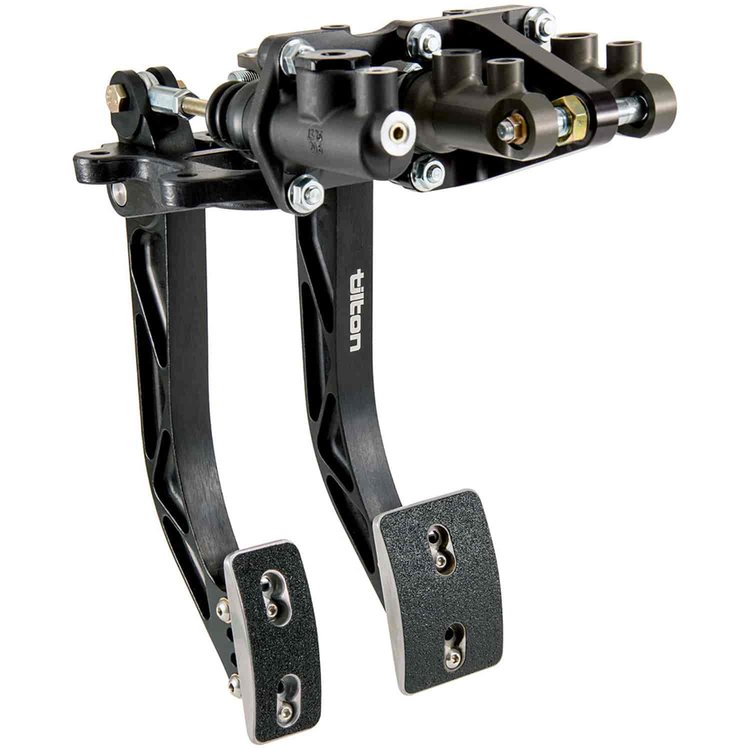

- 800-Series 2-Pedal Assembly
- Overhung Mount
Tilton's 800-Series overhung pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.
Features: - High-efficiency balance bar and pivot-mount master cylinder design
- Forged aluminum pedals are engineered for high rigidity and low weight.
- Adjustable pedal ratios (5.0:1 - 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
- Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
- Large diameter 7/16"-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
- Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
- Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping, decreasing friction and improving brake repeatability.
- Note: Master cylinders are sold separately
Precision Pedal Feel Built for Full-Control Racing
Tilton 800-Series Racing Pedal Assemblies deliver competition-proven driver control through Tilton’s decades of motorsports engineering and precision manufacturing. Designed with durable materials, smooth pivot action, and adjustable geometry, these pedal assemblies provide consistent modulation and confident feedback under high-pressure braking and clutch operation. Built to withstand demanding race environments while supporting a wide range of cockpit layouts and driving preferences, the 800-Series reflects Tilton’s focus on strength, reliability, and repeatable performance for drivers who require professional-grade control lap after lap.
