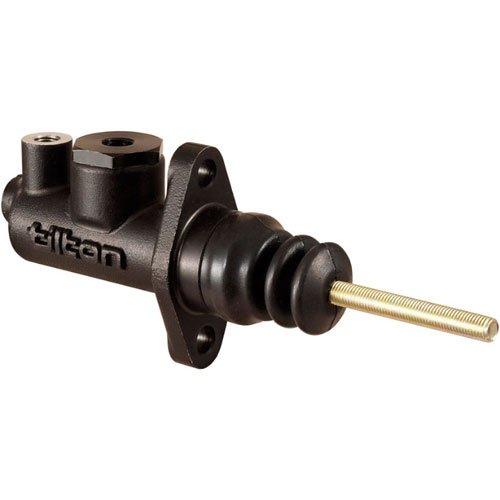

Master Cylinder 1" Bore (25.4mm)

Name: Master Cylinder 1" Bore (25.4mm)
Brand: TILTON
SKU: 454-76-1000
Price: 123.25 USD
Availability: InStock

^$123²⁵

More than 10 available

Ships on Sep 08, 2026

Lowest Price Guarantee

Master Cylinders

1" Bore (25.4mm)
1.1" Stroke

Tilton strives to produce the best racing parts and service for drivers and racing teams. These new designed 76-Series master cylinders share the similar compact body of the Tilton 75-Series, but feature an AN-4 inlet port adapter. Specifically manufactured to accommodate remote-mounted reservoirs. Dual outlet ports allow for flexibility for brake line plumbing and enables maximum clearance. Available in multiple bore sizes.

Features:

Aluminum alloy body is black anodized for corrosion resistance.
1.1" of stroke provides the fluid displacement needed for a wide variety of applications.
Industry standard 2.25" (center-to-center) front flange mount.
Dual AN-3 outlet ports.
Top outlet port is compatible with both AN-3 and banjo fittings. Both outlet ports can be used with standard fitting without the need for modification or adapters.
AN-4 inlet port adapter.
Weighs .69lbs (varies by bore size).
Optional use of either port to connect to a brake pressure sensor, bleed port, brake light switch, and more. NOTE: 76-series master cylinders are not designed for use with ABS.

Part TypeMaster Cylinder

Product LineTilton 76-Series Master Cylinders

BrandTILTON

Package Height2.3

Package Width3.4

Package Length8.7

Weight0.95 PG

Part CategoryPerformance Parts

Master Cylinder Stroke1.1 in (27.94 mm)

Mounting Flange Center To Center Distance (In.)2.25

Master Cylinder Bore Size1 in (25.4 mm)

Part FitmentSemi Universal
