Vehicle Info NeededTOP STREET PERFORMANCEPART NUMBER: 743-JM9601R

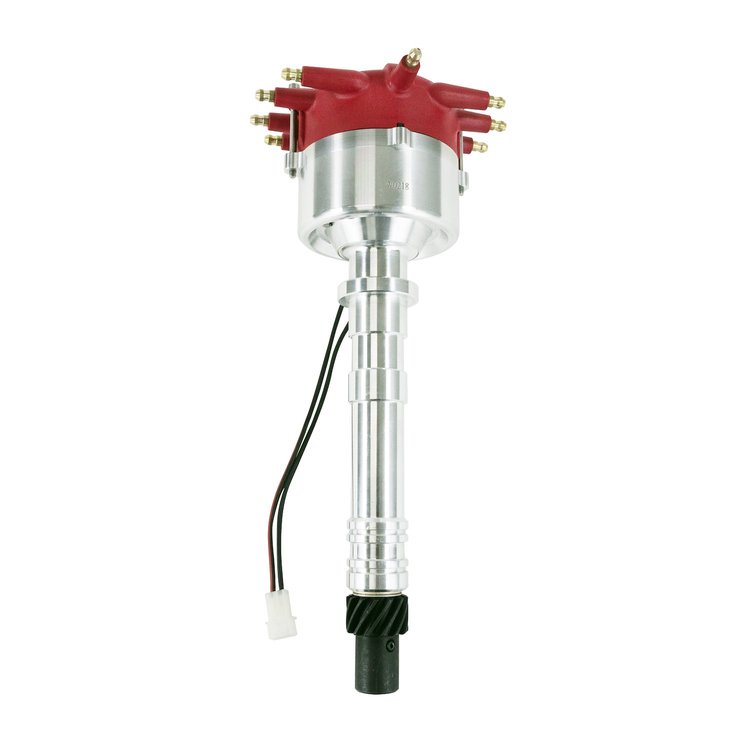

JM9601R Pro Series Pro Billet Low-Profile Distributor, Chevy V8, Red
$19754
2 left in stock
Ships Today
Lowest Price GuaranteeGM
Pro Series Pro Billet Low-Profile Distributorfor Small Block 262-400 and Big Block Mark Iv 396-454 Red
Top Street Performance JM9601R Features:
TSP's Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pick-up trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. This new low-profile distributor features a re-designed housing and crab-style cap. Measuring less than 5" from the mounting surface to the top, installing a blower will be a breeze.- Trigger Style: Magnetic Pick Up
- Advance Type: Mechanical
- Coil Type: External (Not Included)
- Terminal Style: Male
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeDistributor
BrandTOP STREET PERFORMANCE
Package Height1.9
Package Width5.1
Package Length<5 inches
Weight4.6 PG
Distributor Cap IncludedYes
Operation TypeMechanical
Housing FinishPolished
Housing MaterialAluminum
Ignition Box RequiredYes
Distributor TypeHEI/Breakerless
Ignition Rotor IncludedYes
Ignition Module IncludedNo
Engine Make/SizeChevy Big Block (396-454), Chevy Small Block (262-400)
Connector TypeMale
Shaft MaterialSteel
Ignition Coil IncludedNo
Slip CollarYes
Rotor RotationStandard
Mechanical Tach DriveNo
Gear MaterialSteel
Distributor Gear IncludedYes
Marine UseNo
Distributor Cap ColorRed
Terminal TypeHEI
Coil Wire IncludedNo
Trigger StyleMagnetic
Housing ColorMachined Aluminum
Distributor Gear RotationStandard
Computer Controlled CompatibleNo
Grade TypePerformance
Vendor Part NumberJM9601R
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
