Features:

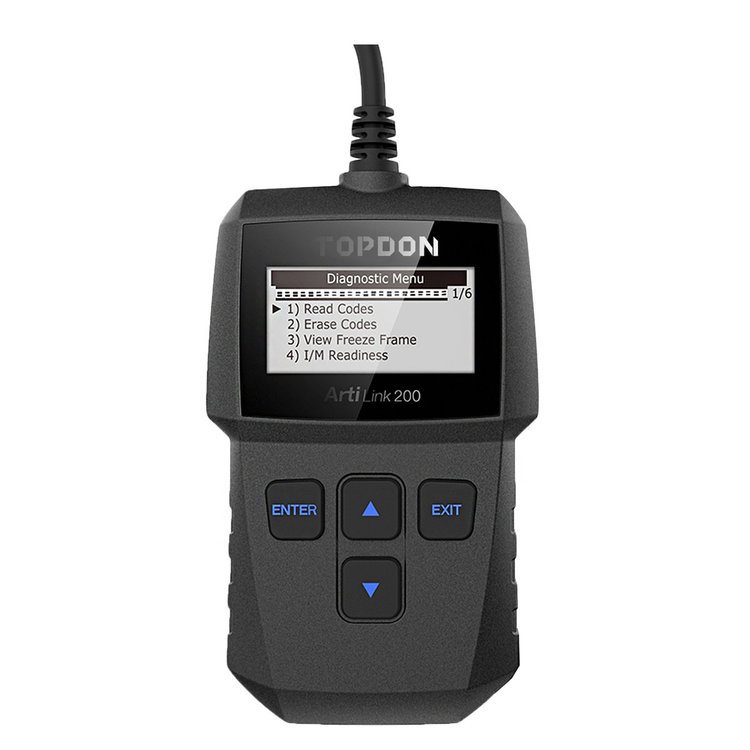

• Entry-level diagnostic scanning tool
• Supports ALL OBD-II (K Line, L Line, Double CAN, J1850 PWM, and J1850 VPW) protocols
• For most 1996-newer (US), 2000-newer (European) vehicle makes/models supporting the OBD-II system
• Quickly and accurately check the vehicle emission system
• Easily read diagnostic trouble codes
• User-friendly menus and data graphing display
• Black-and-white LED screen (128 x 64 pixel) with a clear display in bright light
• Durable ABS outer protection case with rubber keys
• Includes (1) 41.340 in. (105 cm) diagnostic cable
• Languages include English, French, German, Spanish, and Dutch

Note:

• No software updates
• No live data viewing
• No ABS, SRS, transmission diagnosis support

Functions:

• Erase check engine lights (MIL)
• Clear trouble codes
• Reset monitors
• Shows the detailed description of current diagnostic trouble codes (DTC), generic, manufacturer-specific and pending codes
• Automatic VIN retrieval for faster diagnosis
• Inspection/Maintenance (I/M) readiness check for proper emission systems inspection and status
• View freeze frame data from the vehicles operating parameters at the moment a DTC is detected

Specifications:

• 128 x 64 pixel display w/ backlight
• Operating Voltage: 9~16V
• Operating Current: 40~50mA
• 0.600 Watts
• 8-18 V (supplied by the vehicle's battery)
• Binding chip
• OBD II 16-Pin Standard Interface
• Length: 41.340 in. (105 cm)
• Weight: 0.45 lbs. (202 g)
