Breakdown of Included Items

Dimensions

Quick Start Guide

Features:

• Diagnosis for more than 108 USA, Asian and European vehicle makes and models
• Deep vehicle system coverage for all electronic systems
• 11 special scanning functions
• Supports reading, clearing, saving and printing diagnostic information
• Portable, compact and lightweight
• User-friendly Android-based operation system
• Bluetooth and Wi-Fi enabled for online surfing and performing remote diagnosis
• Free software updates via Wi-Fi for newest car makes and models
• Multi-lingual selection

Functions:

• Clear engine trouble codes
• View live data streams
• Oil reset service: Clear the oil light and perform reset for the engine oil life system
• Steering angle calibration: Perform steering angle adjustment, clear steering sensor fault memory and turn off the steering wheel warning light
• Electronic parking brake reset: Reset the brake pad in electronic parking brake systems
• Battery register/maintenance: Re-match the control module and motoring sensor, clear original low battery information and prevent related control module from detecting false information
• ABS bleeding: Perform various bi-directional tests to check the operating conditions of the anti-lock braking system (ABS)
• Electronic throttle position reset: Initialize the throttle actuators to the default state for accurate throttle (or engine idle) operations
• DPF regeneration: Clear particulate matter from the DPF filter to stabilize filter performance
• TPMS reset: Reset tire pressure and turn off the tire pressure MIL
• Immobilizer matching: Clear the lost car key’s information and program a new key into the ECU database
• Fuel injector coding: Program new fuel injector numbers into the ECU after replacement
• Tooth learning: Complete tooth learning after changing the vehicle's engine crankshaft

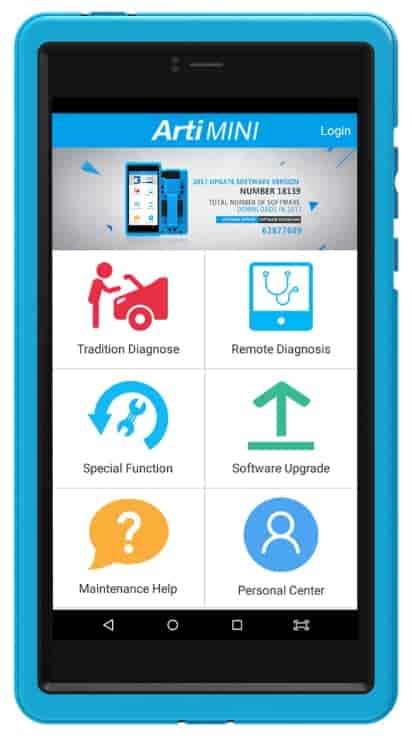

Tablet Specifications:

• 6.900 in. HD LCD touchscreen display
• Android 5.1 operating system
• 2.0-megapixel front camera
• 5.0-megapixel rear camera
• 1.3 GHz quad-core processor
• 2 GB processor memory
• 16 GB onboard storage
• 3000mAh rechargeable lithium-polymer battery
• Bluetooth 4.1, WLAN 802.11b connectivity
• 100-meter Bluetooth range
• 9-18 V power output
• 14 degrees F (-10 C) to 122 degrees F (50 C) operating temperature
