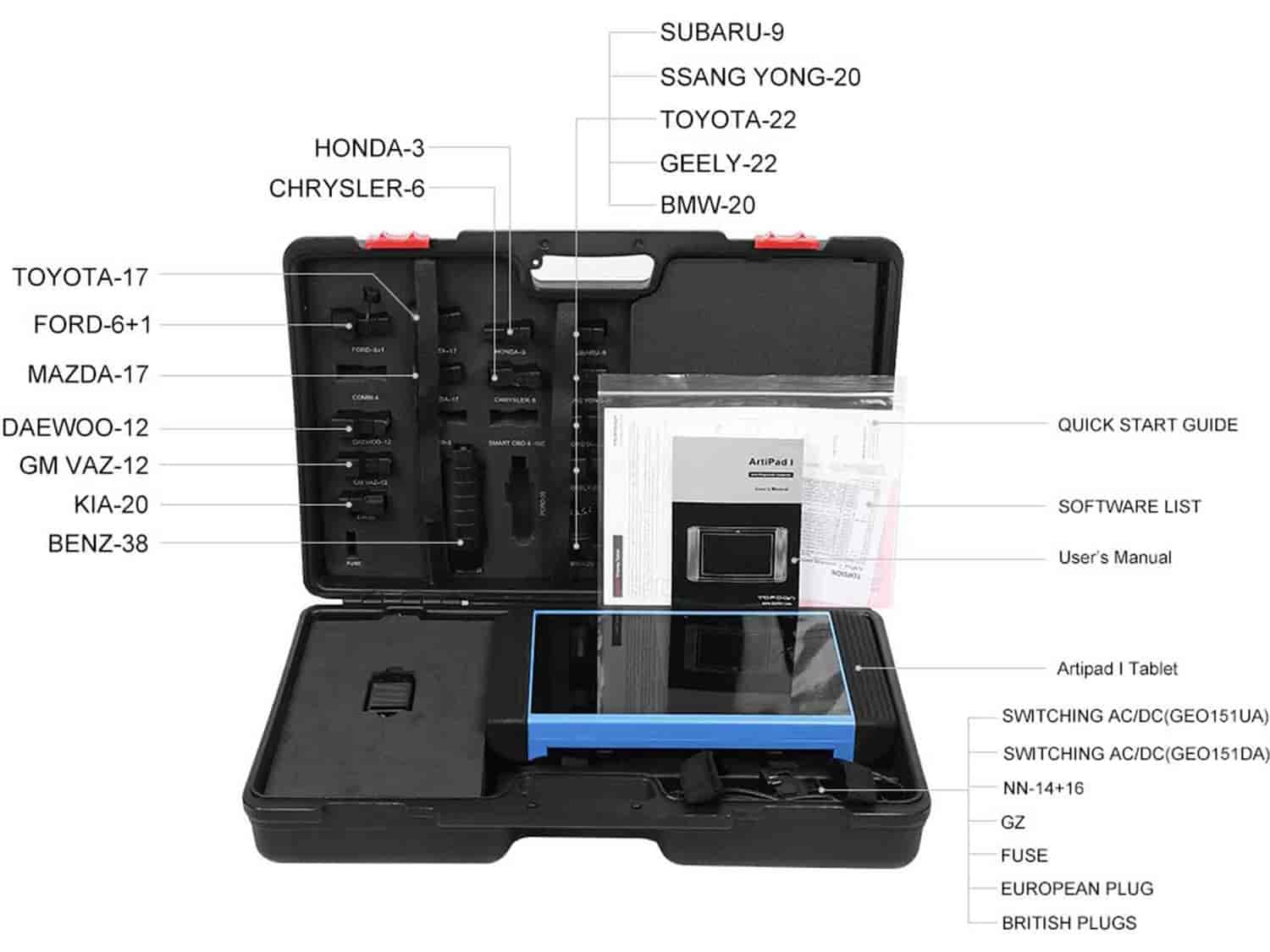

Breakdown of Included Items

Dimensions

Quick Start Guide

Features:

• Designed for over 80 1996-newer US-based and 2000-newer European-based OBD-II vehicles
• 11 unique scan functions and full systems diagnoses
• Advance ECU coding and programming for Mercedes Benz, BMW, VW, and AUDI
• Access to instant remote control tech support
• Workshop operation to keep all data files, customer information, and vehicle records well organized
• Portable and compact with rubberized outer protection case
• Small 5.5 mm diameter head allows for use in the tight spaces
• Modular design allows for future capability expansions
• Includes MOTOR Repair Information:
  • Provides unique vehicle data points and sourcing
  • Covers all vehicles class 1 through 8
  • Categorized by year/make/model/engine/VIN

Functions:

• Interactive data logging for first-hand troubleshooting
• Reads data including sensor ID, tire pressure, temperature, battery condition, OE part number, and relearn information
• Anti-lock braking system (ABS) and safety restraint system (SRS) reset
• Anti-lock braking system (ABS) bleeding
• Air conditioning initialization
• Oil life reset
• DPF regeneration
• Steering angle sensor (SAS) calibration
• Checks remote keyless entry (Key FOB) for transmissions
• On-screen multiple data comparison to easily analyze results
• Pre-selection process offers faster activation and diagnostics
• Proper LF signal to prevent false RF signals
• Save up to 10 TPMS records for future data review
• Up-close visual inspections for small part inspections
• Automatic power-off to preserve battery life

Tablet Specifications:

• 12 in. display with 1920x1200 resolution and capacitive touchscreen
• Android 5.1 operating system
• 8-Core 2.0GHz processor
• 2 GB RAM
• 64 GB embedded Memory
• SD card (supports up to 128 GB)
• 2.0 USB, HDMI 1.4a
• 802.11a/b/g/n/ac WI-FI, 2.0 3Mbs Bluetooth, RJ45 ethernet connectivity
• 2.0-megapixel front camera
• 8.0-megapixel rear camera with autofocus and flash
• Gravity accelerometer sensor
• Microphone, dual speakers and 3.5mm stereo/standard headset jack
• 3.7V/15000mAH Lithium-polymer battery
• DC/5 V/3 Amp input voltage
• 20 Watt power
• 14 degrees F (10 C) - 131 degrees F (55 C) operating temperature
• 14.800 in. length x 8.600 height x 1.960 width
• 4.62 lbs.
