Breakdown of Included Items

Dimensions

OBD-II Diagnostic Scanner Comparison Chart

Features:

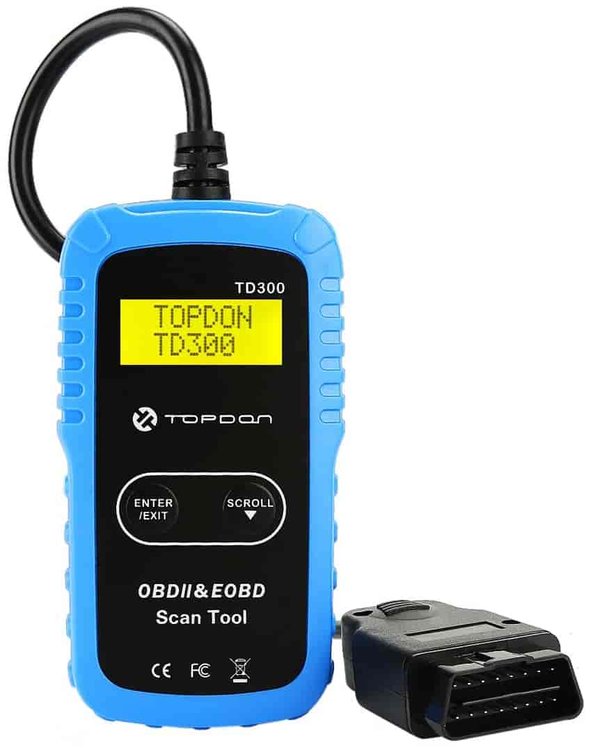

• Entry-level OBD-II diagnostic scanner
• For 1996-newer US-based and 2000-newer European-based vehicle makes and models
• Compact mini-size for convenient carrying and storage
• Cost-effective designed with basic OBD-II functions
• Over 7,000 code definitions included within the user manual
• Powered by the OBD-II port, no battery is needed
• durable, anti-skid outer protector
• Note:
  • No software updates
  • English language support only
  • For 12 V vehicles only

Functions:

• Erase check engine lights (MIL)
• Clear trouble codes
• Reset monitors
• Shows the detailed description of current diagnostic trouble codes (DTC), generic, manufacturer-specific and pending codes
• Automatic VIN retrieval for faster diagnosis
• Inspection/Maintenance (I/M) readiness check for proper emission systems inspection and status

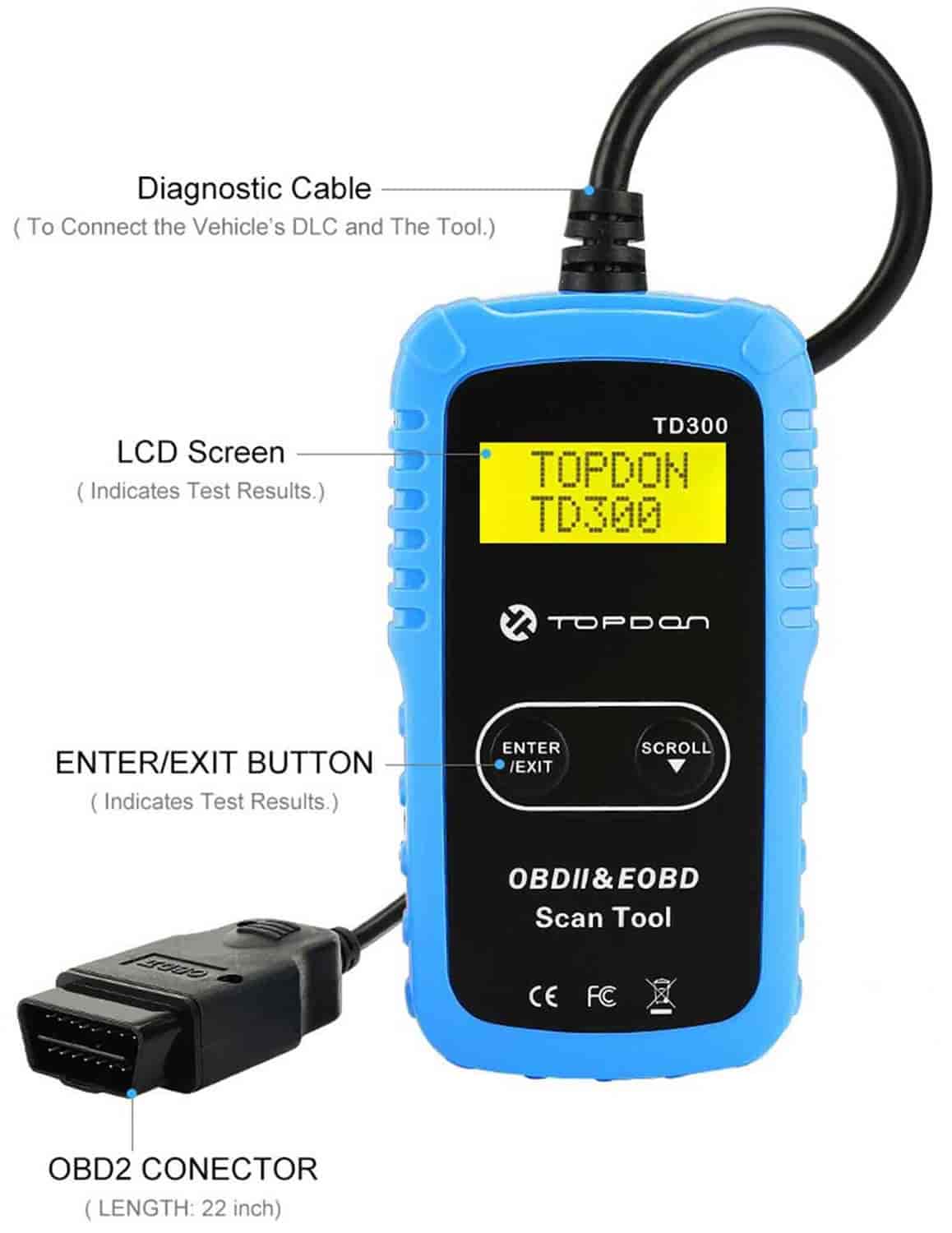

Scanner Specifications:

• White and black LCD backlit display, 2-line 8 characters
• 32 in. 16-pin OBD-II port connector
• 32 degrees F (0 C) to 122 degrees F (50 C) operating temperature
• -4 degrees F (-20 C) to 158 degrees F (70 C) storage temperature
• 10-15.5 V output provided via vehicle battery
• .5 (1/2) lbs.
