Breakdown of Included Items

Dimensions

Features:

• For 12 V automotive batteries in cars/light trucks/SUV's
• Supports cranking and charging tests on ordinary lead-acid batteries, gel batteries, AGM flat plate, and spiral batteries
• Checks and analyzes battery SOH (state of health), SOC (state of charge), voltage, current, and rating
• Displays 5 easy-to-read battery test results: Good Battery / Good Battery, Needs Recharge / Replace, Life Cycle / Replace, Bad Cell / Charge, Retest
• Digital LCD display screen
• Designed with reverse polarity protection to avoid damage to the battery or the tester
• Uses advanced conductance measurement technology for faster results
• Compatible with the majority of battery testing standards - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB
• Supports English, Japanese, Russian, Spanish, French, and German languages

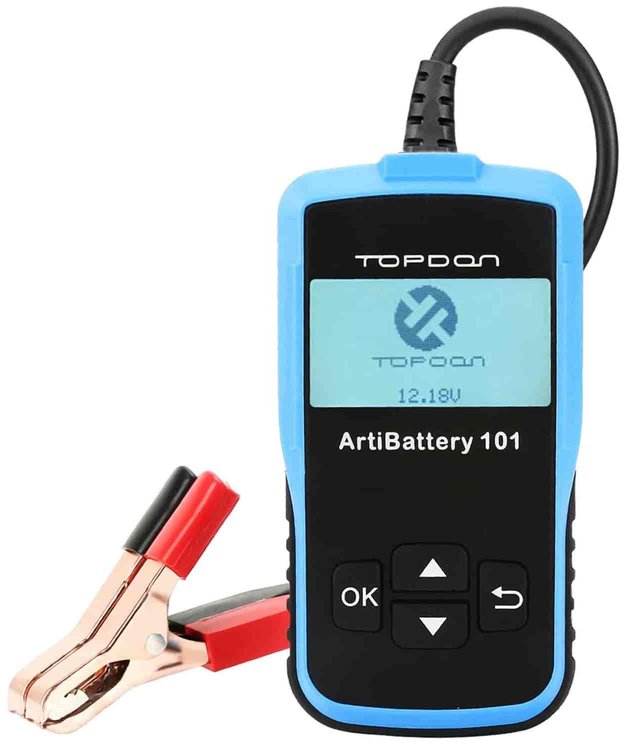

Tester Specifications:

• 220x176 LCD display
• Acid-proof plastic with silica gel buttons
• Voltage: 8-16 VDC
• Cold-cranking amps (CCA): 100-2,000
• Battery council international (BCI): 100-2,000
• Cranking amps (CA): 100-2,000
• Marine cranking amps (MCA): 100-2,000
• Japan industrial standard (JIS): 26A17-245H52
• German auto industry committee (DIN): 100-1,400
• Internal electrical technical commission (IEC): 100-1,400
• European automobile industry association (EN): 100-2,000
• Society of automotive engineers (SAE): 100-2,000
• China national standard (GB): 30Ah-200Ah
