Breakdown of Included Items

Dimensions

OBD-II Diagnostic Scanner Comparison Chart

Features:

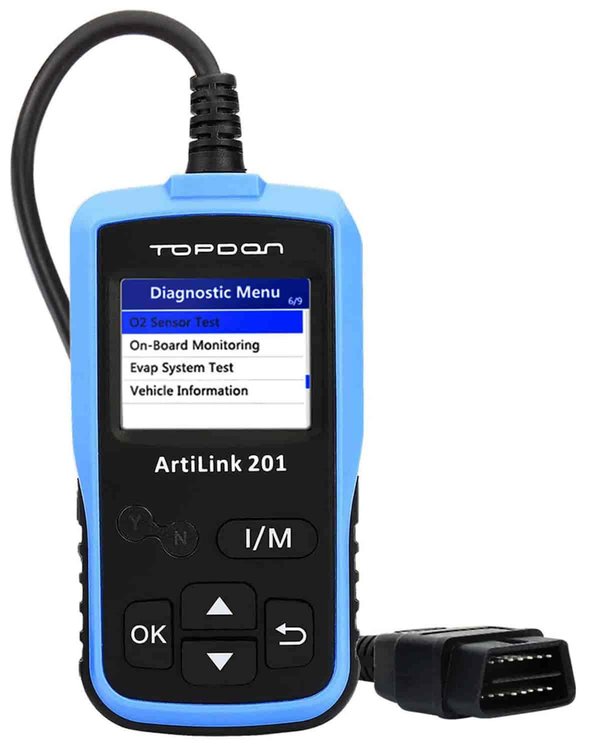

• Entry-level diagnostic scanner
• For most 1996-newer US-based, 2000-newer European-based vehicle makes/models supporting the OBD-II system
• Quickly and accurately check the vehicle’s emission system
• Easily read diagnostic trouble codes and their definitions
• User-friendly menus and data graphing display
• Durable outer protection case
• Includes 3.600 ft. diagnostic cable
• Supports English, French, Spanish, Japanese, Italian, Russian, Portuguese and Germany languages
• Note:
  • Free updates available through the TOPDON official website: Connect to a PC, download the file and move it to scan tool’s disk
  • Does NOT support ABS/SRS diagnosis
  • For 12 V vehicle electrical systems only

Functions:

• Reads and clears trouble codes
• Reads and clears check engine lights (MIL)
• View live data and freeze frame data
• Retrieve vehicle information (VIN, chin, and CVN)
• Inspection/Maintenance (I/M) readiness check: one-button click auto scanner feature that can retrieve the running state of each emissions-related monitor and sensor
• O2 sensor test: Display real-time data and analyze O2 sensor data to determine whether the emissions systems are working correctly

Scanner Specifications:

• 2 in. 220x176 Liquid-Crystal Display (LCD) color monitor
• 9-18 V input voltage
• 150mA@12 V operating current
• 1.8 W power consumption
• 32 degrees F (0 C) to 122 degrees F (55 C) operating temperature
