Breakdown of Included Items

Dimensions

Features:

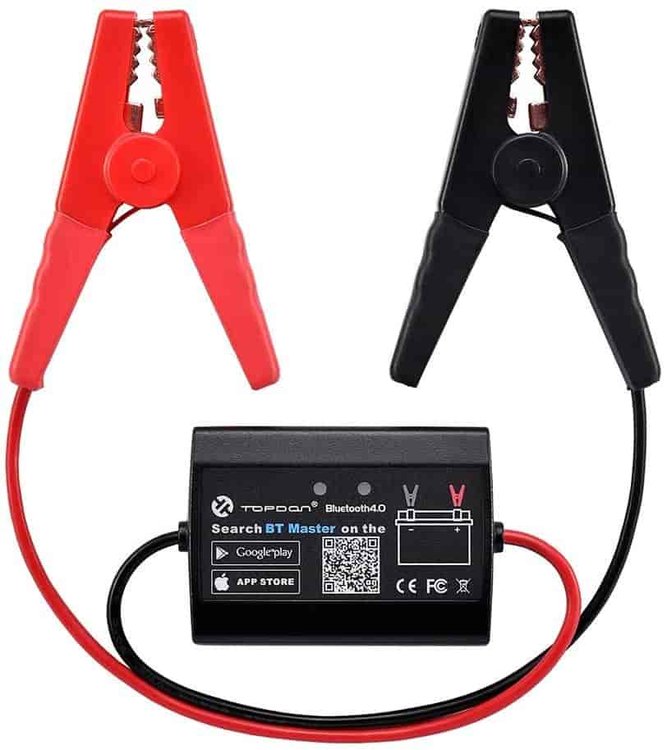

• Battery tester for 12 V batteries
• Testing range from 100 CCA to 2,000 CCA (cold cranking amps)
• Performs battery health test, charging system test, starter test, current test, charging ripple detection and voltage test
• Bluetooth 4.0 connection for Apple iOS and Android-based smart devices
• Supports automatic re-connection when BT Master comes into Bluetooth range

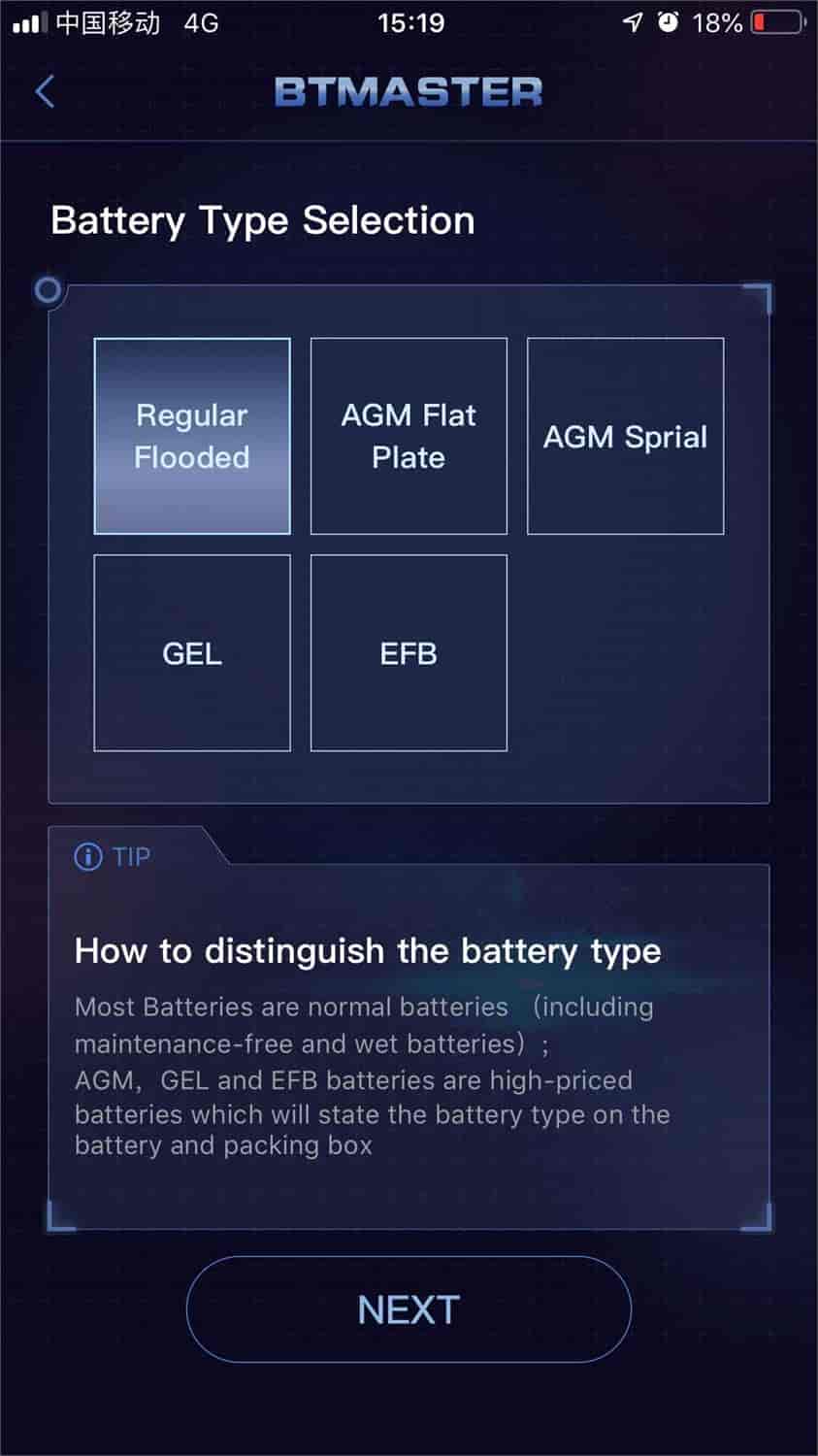

• For use with Topdon BT Master app
• Provides a simple, clear and accurate data display within the app interface
• Report function that automatically saves previous test data for later reviewing and sharing
• Regular detection: App will remind to test the battery every month
• Two-conductor Kelvin clip, 14 in. length
• 10-16 V working voltage
• Less than 10 mA working current
• Acrylonitrile butadiene styrene plastic material
• Supports testing battery standards of CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB

Testing Standards Range:

• CCA: 100-2,000
• BCI: 100-2,000
• CA: 100-2,000
• MCA: 100-2,000
• JIS: 26A17--245H52
• DIN: 100-1,400
• IEC: 100-1,400
• EN: 100-2,000
• SAE: 100-2,000
• GB: 30Ah-220Ah
