Features:

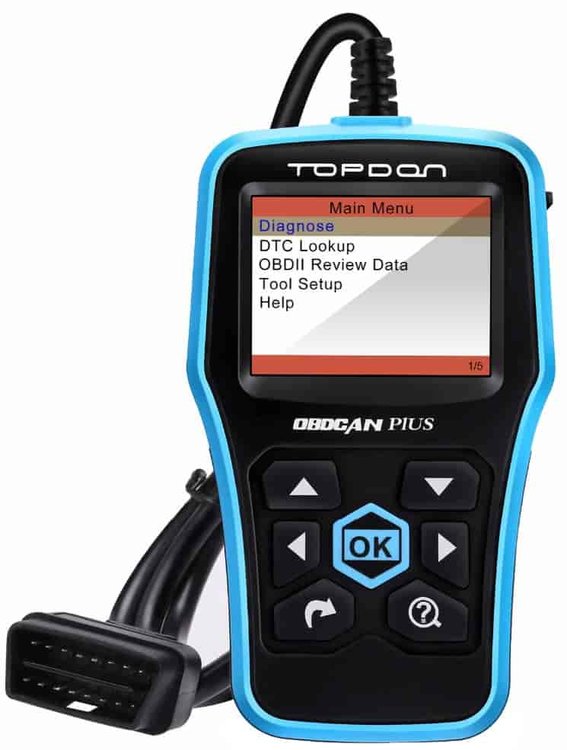

• An entry-level automotive diagnostic scanner
• For most 1996-newer US-based, 2000-newer European-based vehicle makes/models supporting the OBD-II system
• Reads detailed diagnostic trouble code information
• Quickly and accurately check the vehicle’s emission system
• User-friendly menus and data graphing display
• Small and compact size
• Supports English, French, Spanish, Japanese, German, Russian, and Portuguese languages
• Note:
  • Free lifetime software updates through the Topdon official website

Functions:

• Reads and clears engine trouble codes (DTC), generic and manufacturer codes
• Turn off check engine lights (MIL)
• Reset engine monitors
• Read and display live data streams from in-car live graphic (waveform) display
• Read, view and store freeze frame data from the vehicle’s operating parameters at the moment a DTC is detected
• I/M readiness check: one-button click auto scanner feature that can retrieve the running state of each emissions-related monitor and sensor
• O2 sensor test shows lastest results in a graphic display
• On-board monitor tests read the results of on-board diagnostic monitoring for specific components and systems
• Read vehicle information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number)
• View module I.D.'s and communication protocols
• Initiate a leak test for the vehicle’s EVAP system
• Print out recorded data via PC

Scanner Specifications:

• 2.800 in. 320x240 LCD display
• 16-pin OBD-II connector
• USB port
• 9-18 V input voltage range
• 150mA@12 V operating current
• 1.8 W power consumption
• 32 degrees F (0 C) to 122 degrees F (55 C) operating temperature
• -4 degrees F (-20 C) to 158 degrees F (70 C) storage temperature
• Less than 80% working humidity
