Vehicle Info NeededTRAIL GEARPART NUMBER: 542-105032-3-KIT

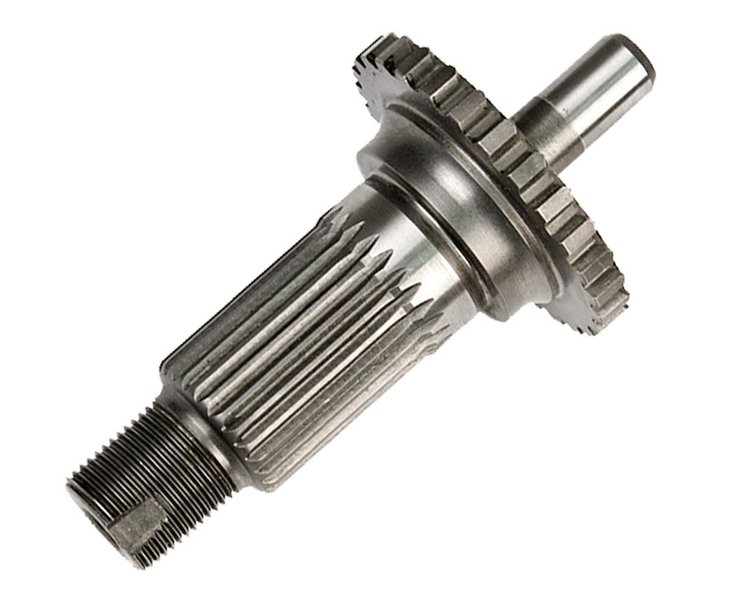

Transfer Case Front Output Shaft 1986-1995 Suzuki Samurai
$12999
Ships on 09/09/2026
Lowest Price GuaranteeOutput Shafts
- Transfer Case Front Output Shaft
- 1986-1995 Suzuki Samurai
Putting in lower transfer case gears and really getting on the throttle can sometimes damage the front output shaft. This results in a loud popping noise under load and is detrimental to the life of the output shaft. Repeated popping of the front output shaft gear will result in gear failure and loss of power to the front axle. In 1993 Suzuki upgraded the output shaft and stopped using the older style shaft that was prone to failure. These later style shafts are a drop in replacement for 1986-1989 transfer cases. This upgrade is especially good for transfer cases that have lower than stock gearing in them because the lower the gear, the higher the toque load going through the gear. The front output gear can be installed without full disassembly of the transfer case. Only the front output cover needs to be removed to install this gear. Replace your older gear now and keep it in your tool box as a trail spare. Fits 1986-1995 Suzuki Samurai's. - Good for transfer cases that have lower than stock gearing in them because the lower the gear, the higher the toque load going through the gear
- Only the front output cover needs to be removed to install this gear
Part TypeTransfer Case Output Shaft
BrandTRAIL GEAR
Package Height2.6
Package Width2.6
Package Length5.2
Weight1.19 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part Number105032-3-KIT
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
