Power Steering Pump Kits
Power Flow Power Steering Pump Upgrade Kit
  • 1979-1995 Toyota Pickup
  • 1985-1995 Toyota 4Runner
  • 4-Cylinder Engines
  • 1650 psi
  • Includes:
    • Pump/Bracket
    • Reservoir/Bracket
    • Cooler
    • Belt
    • Fittings
    • Hoses
    • Hardware


    Trail Gear 130568-1-KIT Power Flow Steering Pump Upgrade Kit for Select 1979-1995 Toyota Pickup, 4Runner Trucks

    The stock Toyota pump is just barely able to supply the volume and pressure needed to run Hydraulic assist steering. The stock pump puts out 1,300 PSI at only one gallon per minute. The stock pump is not able to provide enough fluid to run both the stock steering and the demands of a ram, especially at low RPM's. Drilling out the restrictor plates in a stock pump for more volume often leads to pump failure.

    The answer is a replacement "TC" style pump. The Trail-Gear Power Flow pump puts out 1,650 PSI of pressure at 4.5 gallons per minute. This provides the full fluid volume your steering box and ram are looking for, even at an idle.

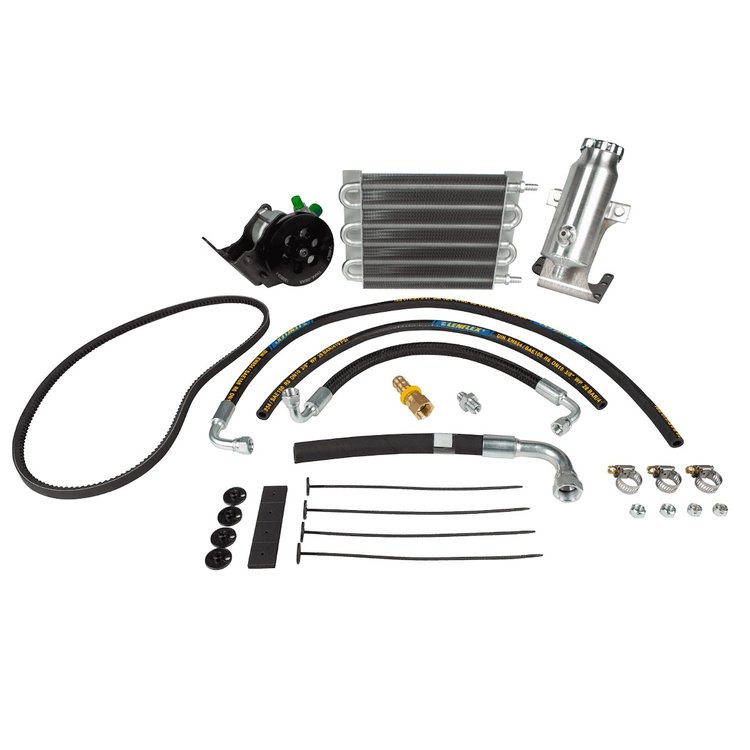

    Designed to work with stock or ram drilled IFS power steering boxes, this kit includes the Power Flow 1,650 PSI pump, pump bracket, reservoir, reservoir bracket, belt, fittings, hoses, and hardware.


    Application Notes: This pump and bracket is designed to fit all Toyota 4cyl 4wd motors from 1979-1995. A large power steering fluid cooler (included) is required on the low-pressure side of the system. Pump bracket works in conjunction with the stock idler bracket. If your truck is not currently equipped with power steering, you will need to purchase the idler bracket and replace the steering gearbox with one designed for use with power steering. The stock fan belt will not work with this pump and will need to be replaced with a Napa #9430 belt. The belt is included with the kit.

    Note. Use only standard power steering fluid with this product. The use of ATF fluid, semi-synthetic fluid, or full synthetic fluid is not recommended and will void the warranty.

    • High-Pressure Power Steering Pump

      Trail-Gear Power Flow 1650 psi Power Steering Pumps development and manufacturing deliver maximum performance in hydraulic ram steering applications. The pump's steel body improves dependability and reduces wear. It has heavy-duty reinforced internals, thick bushings, and an enlarged shaft, making it excellent for high-horsepower motors with higher radial stresses.

    Part TypePower Steering Pump
    Product LineTrail Gear Power Steering Pumps and Components
    BrandTRAIL GEAR
    Package Height7.6
    Package Width12.3
    Package Length20.2
    Weight18.45 PG
    Part CategoryPerformance Parts
    Vendor Part Number130568-1-KIT
    Package Qty1
    Package TypeEA
