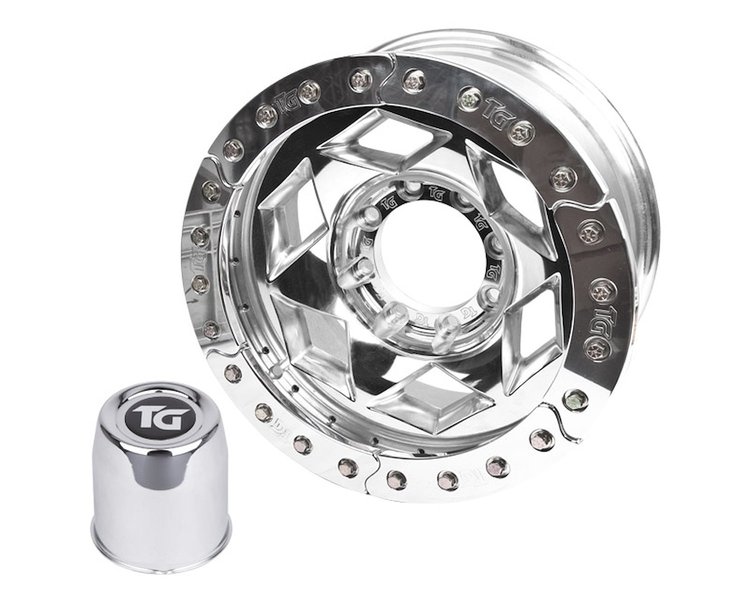

Creeper Locks Aluminum Beadlock Wheel Wheel Size: 17" x 9"
Product Discontinued
TRAIL GEARPART NUMBER: 542-304558-KIT

Creeper Locks Aluminum Beadlock Wheel Wheel Size: 17" x 9"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Polished Beadlock
    Creeper Locks Aluminum Beadlock Wheel
  • Wheel Size: 17" x 9"
  • Bolt Pattern: 8 on 170mm
  • Back Spacing: 5.0"
  • Center Bore: 4-1/4"
  • Polished Beadlock

The Creeper Lock wheels from Trail Gear are designed to be the ultimate off road wheel. The solid billet aluminum construction provides unparalleled wheel strength and superior corrosion resistance. Every Creeper Lock wheel features a unique beadlock design. The inner beadlock is machined into the wheel itself, while the outer beadlock features an interlocking sectional beadlock design. The sectional beadlock design allows for an increased beadlock thickness which leads to deeper bolt recesses to protect the bolt heads, and if you do manage to damage these heavy duty beadlocks the design allows individual damaged sections to be replaced. The beadlock mounting screws are mounted into Time-Sert steel inserts in the wheels, helping to prevent the mounting bolts from galling.

Show More

Features:

  • Solid aircraft grade 6061 T6 billet aluminum w/beadlock rings
  • 17" Rims, 9" Wide
  • 3.75", 4.25", and 5.00" Back Spacing
  • 4-1/4" or 5-1/8" center bore
  • 24, Grade 8 5/16" bolts
  • Time-Sert® Inserts Installed
  • Wheel Rating, 2200 lbs Each
Part TypeWheel
Product LineTrail Gear Creeper Lock Wheels
BrandTRAIL GEAR
Package Height12.0
Package Width20.0
Package Length20.0
Weight44.8 PG
Part CategoryPerformance Parts
Backspacing5 in.
Center Bore Diameter5.125 in.
Wheel Bolt Pattern8 x 170 mm
Wheel Diameter17 in.
Wheel TypeJeep, Truck, SUV Wheels
Part FitmentUniversal
Wheel Offset13 mm (.5118 in)
Wheel Width9 In.
Wheel MaterialBillet Aluminum
Wheel FinishPolished
Bolt Pattern8 x 170 mm
Back Spacing5 in (127 mm)
Offset0.511 in.
Package Qty1
Package TypeEA
