Vehicle Info NeededSingle Oil Filter Relocation Kit GM V6, 4-Cylinder
Ships on 09/09/2026
Lowest Price Guarantee- Single Oil Filter Relocation Kit
- GM V6, 4-Cylinder
- Imports
- Filter Flange Inside Diameter: 2-1/2"
- Filter Flange Outside Diameter: 2-3/4"
Specific Applications
- 1977-07 Buick V6
- 1980-96 Buick 4 Cly. except on oil filter on pan and 2.4L.
- 1994-96 Cadillac 5.7L
- 1999-00 Cadillac Trucks and SUV's 5.7L
- 1980-88 Cadillac V6
- 1982-86 Cadillac 4 Cyl.
- 1994-96 Chevrolet Impala SS and Caprice LT1
- 1988-00 Chevrolet Trucks 5.7L
- 1992-96 Corvette with the 8th vin digit of P.
- 1976-05 Chevrolet L4 and V6. 2.2L, 2.8L, 3.1L, 3.4L,3.8L, and 4.3L
- 1980-02 Chevrolet 4 Cyl.2.2L, 2.5L ,1.9L S-10 ecept those with in pan filter.1.6L Nova.
1.8L Diesel. 1.5L Spectrum. All Geo's - 1988-00 GMC 5.7L
- 1979-07 GMC 1500, S15, and Safari V6 2.8L/4.3L
- 1983-96 GMC 4 Cyl. 2.0L,2.5L S15 except with in pan filter.
- 1980-86 Jeep 4 Cyl.
- 1979-81 Oldsmobile V8 265-301 Only
- 1976-00Oldsmobile V6
- 1980-96 Oldsmobile 4 Cyl. ecept with in pan filter and 2.4L.
- 1979-81 Pontiac V8 265-301 Only
- 1976-07 Pontiac V6 3800 and Firebird except Fiero
- 1979-96 Pontiac 4 Cyl. ecept with in pan filter.

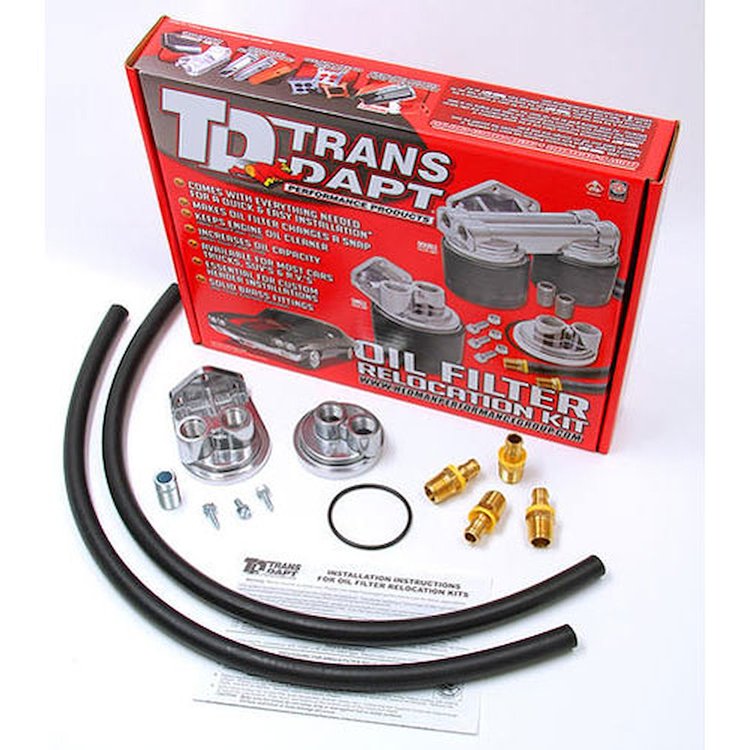

Trans Dapt Remote Oil Filter Relocation Kits increase oil capacity and allow you to relocate your filter to a location that makes oil changes quicker and easier. Kits include an oil filter bypass adapter, remote oil filter bracket with 0.50" NPT inlets and outlets, two 30" hoses with fittings, mounting hardware and instructions. Each cast aluminum bracket accepts 3/4"-16 spin on oil filters, is CNC-machined to exact tolerances and heat treated to deliver maximum strength and durability. These kits are not for use on diesel engine or marine applications.
Show More
The Single Oil Filter Relocation Kits are Trans Dapts original design and the first of its kind on the market. They are considered the premier oil filter relocation kit and include everything except the filters.
The Dual Oil Filter Relocation Kits are designed to double the filtering capabilities and add an extra quart of oil. Dual filtering reduces oil temperatures while providing maximum engine protection. Filters not included.
Note: For Use with 969-1156, Fram PH8A or equivalent oil filters (sold separately).
