Vehicle Info NeededDual Oil Filter Relocation Kit Small Block Chevy V8
Ships Tomorrow
Lowest Price Guarantee- Dual Oil Filter Relocation Kit
- Small Block Chevy V8
- Big Block Chevy V8
- Filter Flange Inside Diameter: 3-3/16"
- Filter Flange Outside Diameter: 3-7/16"
Specific Applications
- 1968-76 Buick V6
- 1991-96 Buick V8 LT1
- 1990-93 Cadillac V8
- 1962-89 Chevy L6
- 1965-2005 Chevy big block V8
- 1968-2000 Chevy V8 except 1988-2002 small block V8 4WD truck, 1990-2002 Corvette*, 1998-2002 Camaro, and 1994-96 Caprice/Impala SS
- 1964-76 Pontiac L6
- 1978-97 Pontiac with Chevy V8s
- 1968-89 GMC L6
- 1968-98 GMC V8
- 1966-76 Olds L6
- 1991-92 Olds V8
*An exception to the exception: This kit does work on 1990-91 5.7L Corvettes that have the numeral 8 as the eighth character of their VIN#

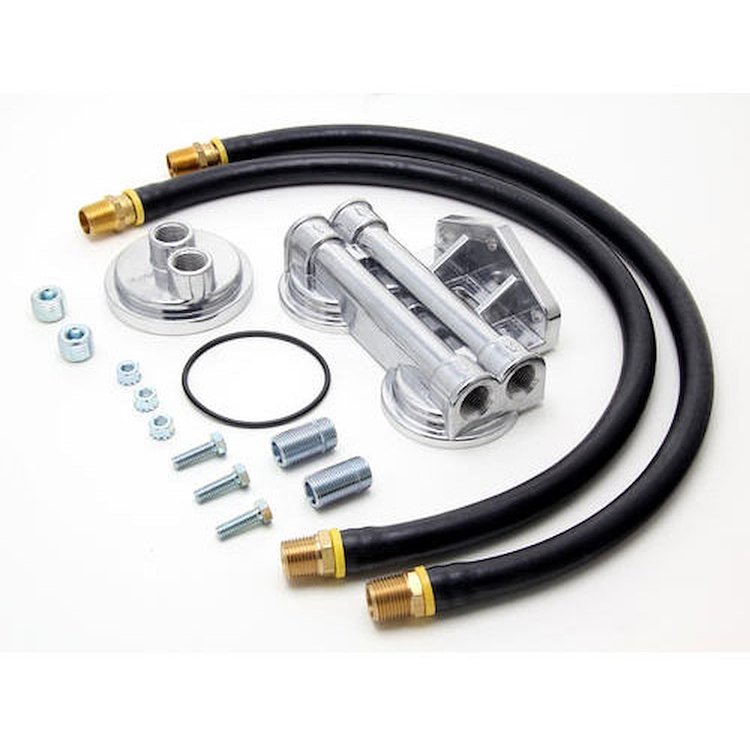

Trans Dapt Remote Oil Filter Relocation Kits increase oil capacity and allow you to relocate your filter to a location that makes oil changes quicker and easier. Kits include an oil filter bypass adapter, remote oil filter bracket with 0.50" NPT inlets and outlets, two 30" hoses with fittings, mounting hardware and instructions. Each cast aluminum bracket accepts 3/4"-16 spin on oil filters, is CNC-machined to exact tolerances and heat treated to deliver maximum strength and durability. These kits are not for use on diesel engine or marine applications.
Show More
The Single Oil Filter Relocation Kits are Trans Dapts original design and the first of its kind on the market. They are considered the premier oil filter relocation kit and include everything except the filters.
The Dual Oil Filter Relocation Kits are designed to double the filtering capabilities and add an extra quart of oil. Dual filtering reduces oil temperatures while providing maximum engine protection. Filters not included.
Note: For Use with 969-1156, Fram PH8A or equivalent oil filters (sold separately).
