Vehicle Info NeededTRANS DAPTPART NUMBER: 969-1320

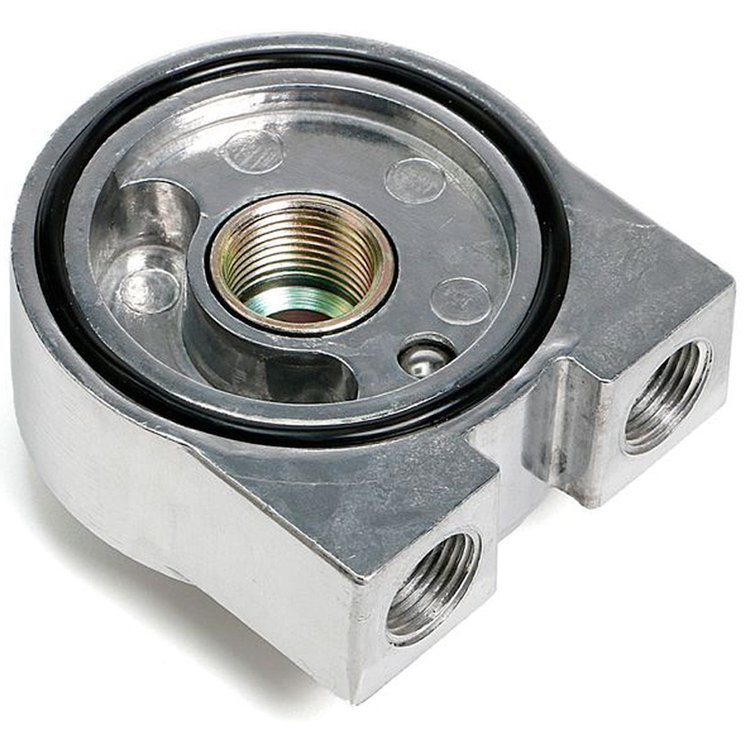

Oil Cooler Sandwich Adapter GM LS-Series, Buick, Oldsmobile, Pontiac & Cadillac V8 4.8L/5.3L/6.0L
$4599
Ships on Sep 15, 2026
Lowest Price GuaranteeGM
- Oil Cooler Sandwich Adapter
- GM LS-Series, Buick, Oldsmobile, Pontiac & Cadillac V8 4.8L/5.3L/6.0L
- Thread Size: 13/16"-16
- Height: 1"
- Port Size: 3/8"
- Inside Diameter: 2-1/2"
- Outside Diameter: 2-3/4"
- Trans Dapt Oil Cooler Sandwich Adapters provide an in and out port for installing an oil cooler without the need to relocate the oil filter. These adapters mount between the oil filter and block, replacing the stock bypass and bolting into the mounting holes left after the bypass is removed. An O-ring seal is utilized to prevent leaks. Cooler is not included.Note: Not for use with Marine or Diesel applications.
Part TypeOil Filter Adapter
Product LineTrans Dapt Oil Cooler Sandwich Adapters
BrandTRANS DAPT
Package Height3.5
Package Width4.8
Package Length5.0
Weight0.93 PG
Part CategoryPerformance Parts
Outlet Size3/8 NPT
Hardware IncludedYes
Nipple Thread Size (In.)13/16-16
QuantitySold individually
Inlet Size (In.)3/8 NPT
Filter Adapter StyleSandwich adapter
Oil Filter IncludedNo
Fittings IncludedNo
Adapter FinishNatural
Part FitmentSemi Universal
Adapter MaterialAluminum
Hoses IncludedNo
Vendor Part Number1320
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
