Single Oil Filter Relocation Kit Ford Inline-6/V6/V8, Mopar Slant-6/V8
InfoVehicle Info Needed
TRANS DAPTPART NUMBER: 969-1813

Single Oil Filter Relocation Kit Ford Inline-6/V6/V8, Mopar Slant-6/V8

$13199
1 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Single Oil Filter Relocation Kits
Single Oil Filter Relocation Kit
  • Ford Inline-6/V6/V8
  • Mopar Slant-6/V8
  • Filter Flange Inside Diameter: 2-1/2 in.
  • Filter Flange Outside Diameter: 2-3/4 in.

    • FILTER BYPASS STYLE: 90º Port Filter Bypass
    • VEHICLE OIL FILTER FLANGE ID: 2-1/2"
    • VEHICLE OIL FILTER FLANGE OD: 2-3/4"
    • FITS: FORD INLINE 6, V6 & V8, MOPAR SLANT6 & V8
    • PORT SIZE: 1/2" NPT
    • PORT STYLE: Horizontal
    • Material: Cast Aluminum
    • REMOTE BASE FILTER SIZE: PH8A (or equivalent)
    • BYPASS MOUNTING STYLE: Spin-On
    • FITTING MATERIAL: Brass
    • FITTING TYPE: Hose Barb
    • FITTING QUANTITY: 4
    • HOSE CONNECTION TYPE: Push Lock
    • HOSE LENGTH: 30"
    • NIPPLE THREAD SIZE: 3/4"-16

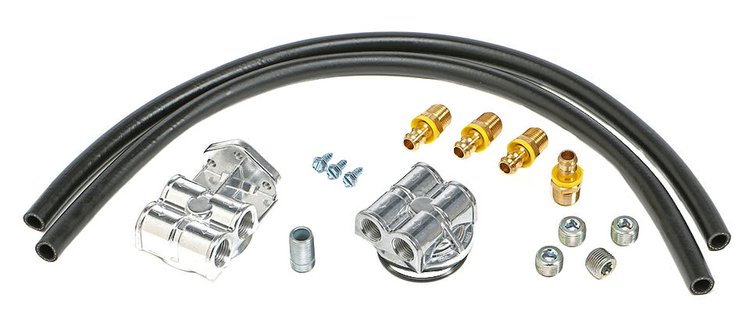

    • Trans Dapt Remote Oil Filter Relocation Kits increase oil capacity and allow you to relocate your filter to a location that makes oil changes quicker and easier. Kits include an oil filter bypass adapter, remote oil filter bracket with 0.50" NPT inlets and outlets, two 30" hoses with fittings, mounting hardware and instructions. Each cast aluminum bracket accepts 3/4"-16 spin on oil filters, is CNC-machined to exact tolerances and heat treated to deliver maximum strength and durability. These kits are not for use on diesel engine or marine applications.

      Show More

      The Single Oil Filter Relocation Kits are Trans Dapts original design and the first of its kind on the market. They are considered the premier oil filter relocation kit and include everything except the filters.

      The Dual Oil Filter Relocation Kits are designed to double the filtering capabilities and add an extra quart of oil. Dual filtering reduces oil temperatures while providing maximum engine protection. Filters not included.

      Note: For Use with 969-1156, Fram PH8A or equivalent oil filters (sold separately).

    Part TypeOil Filter Relocation Kit
    Product LineTrans Dapt Remote Oil Filter Relocation Kits
    BrandTRANS DAPT
    Package Height3.9
    Package Width8.6
    Package Length11.9
    Weight3.35 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number1813
    Package Qty1
    Package TypeEA
