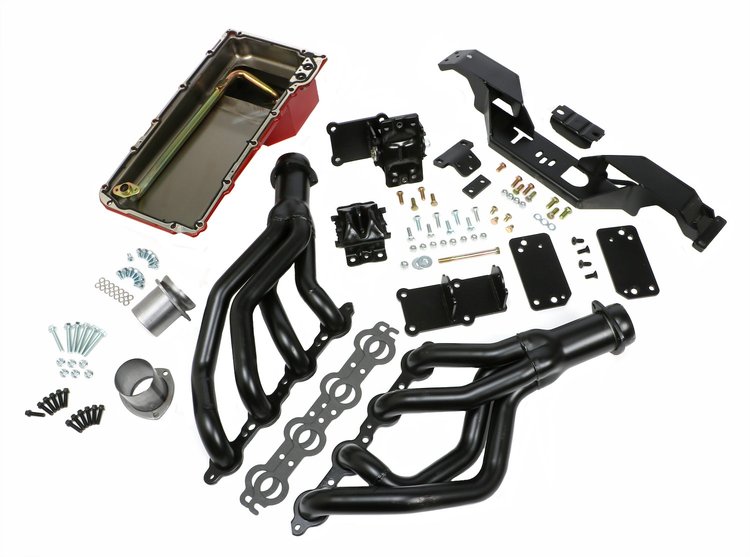

42011 Swap-In-A-Box Kit for GM Gen III/IV LS Engine and Automatic Transmission, 1967-1969 GM F-Body, 1968-1974 GM X-Body
InfoVehicle Info Needed
TRANS DAPTPART NUMBER: 969-42011

42011 Swap-In-A-Box Kit for GM Gen III/IV LS Engine and Automatic Transmission, 1967-1969 GM F-Body, 1968-1974 GM X-Body

$1,13999
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee
Best Value
Save
$3853
Street & Strip GM LS Engine Swap Kit Fits 1967-1969 Camaro

555-50228K

Street & Strip GM LS Engine Swap Kit Fits 1967-1969 Camaro

$1,10146

GM F-Body, X-Body
Swap-In-A-Box Kit
  • GM Gen III/IV LS Engine and Automatic Transmission
  • 1967-1969 GM F-Body
  • 1968-1974 GM X-Body
  • 1-3/4 in. Mid-Length Headers
  • Uncoated Finish

    Trans Dapt 42011 LS Engine Swap Kit Features:

    • Includes Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets

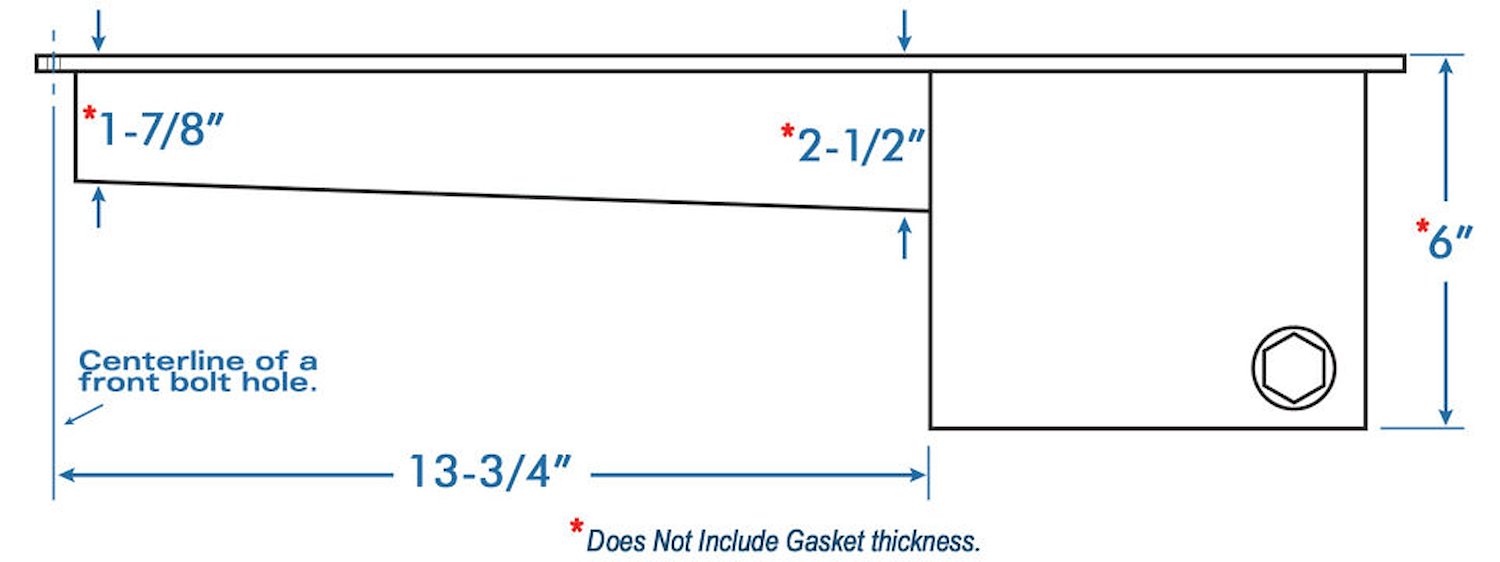

    • Oil Pan Depth: 2 in. at front of Pan; 6 in. at Rear Sump

    Trans Dapt 42011 LS Engine Swap Kit Notes:

    • Pan has -10AN inlet/outlet ports, and requires relocation of the oil filter
    • Some LS have dipsticks in pan and will require the drilling of dipstick port on the block
    • Not for use with 4L80E or 4L85E Transmissions

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeSwap Kit
    BrandTRANS DAPT
    Package Height20.0
    Package Width21.75
    Package Length38.0
    Weight117.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity5 quarts
    Hardware IncludedYes
    Pickup IncludedYes
    Header FinishUncoated
    Crank Shaft Wiper IncludedNo
    Transmission Mount Included6418
    Oil Pan MaterialSteel
    Gaskets IncludedYes
    Headers IncludedYes
    Sump LocationRear
    Capacity5 qt.
    Port ShapeRound
    TunedNo
    Motor Mounts Included4201
    Kicked OutNo
    Primary Tube Gauge16-gauge
    Header StyleMid-length
    Collector StyleBall & Socket
    Universal Or Specific FitSpecific
    BaffledNo
    QuantitySold as a Kit
    Header Fasteners IncludedYes
    Oil Pan FinishRed painted
    Drain Plug IncludedYes
    Dipstick Port (Y/N)No
    Header MaterialMild Steel
    Windage Tray IncludedNo
    Oil Pan IncludedYes
    Collector Diameter3 in (76.2 mm)
    Part FitmentSemi Universal
    Reducers IncludedYes
    Oxygen SensorNO
    Head StyleFactory Heads
    Bolts Or Studs IncludedYes
    Primary Tube Diameter1.75 in (44.5 mm)
    Vendor Part Number42011
    Package Qty1
    Package TypeEA
