Vehicle Info NeededTRANS DAPTPART NUMBER: 969-42163

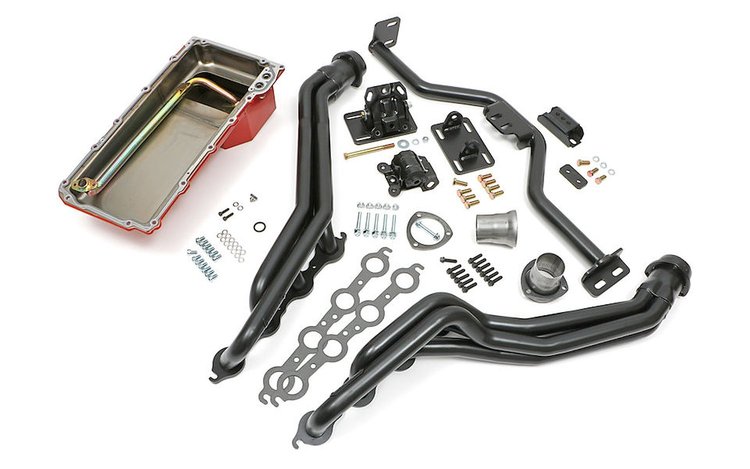

42163 Engine Swap-In-A-Box Kit for GM LS (Gen III/IV) Engine and 4L60E/70E Transmission, 1982-2004 GM S10/S15/Blazer 2WD
$1,35899
1 left in stock
Ships Today
Lowest Price GuaranteeChevy S10/GMC S15
Engine Swap-In-A-Box KitFor GM LS (Gen III/IV) Engine and 4L60E/70E Transmission 1982-2004 GM S10/S15/Blazer 2WD 1-1/2 in. Long-Tube Headers Uncoated Length
Trans Dapt 42163 Features:
- Includes Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware, and Gaskets
- Pan depth: 2 in. at front of Pan; 6 in. at Rear Sump
Trans Dapt 42163 Notes:
- Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter
- Some LS have dipstick in pan and will require drilling of dipstick port on block
- The Transmission Crossmember In This Kit Is Not For Use On Blazer/Jimmy Models
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
LS Engine Swaps Made Easy
Trans Dapt's LS Engine Swap in a Box Kits are all meticulously designed for seamlessly installing LS series engines into GM A-Body cars or S10/Blazer trucks. These kits eliminate the guesswork in component selection. Each package includes precisely matched headers, motor mounts, and engine swap oil pans, meticulously engineered for seamless integration.Part TypeSwap Kit
Product LineTrans Dapt LS Engine Swap in a Box Kits
BrandTRANS DAPT
Package Height21.5
Package Width22.3
Package Length47.0
Weight44.0 PG
Part CategoryPerformance Parts
Oil Pan Capacity5 quarts
Hardware IncludedYes
Pickup IncludedYes
Header FinishUncoated
Crank Shaft Wiper IncludedNo
Oil Pan MaterialSteel
Gaskets IncludedYes
Headers IncludedYes
Sump LocationRear
Capacity5 qt.
Port ShapeRound
TunedNo
Motor Mounts IncludedYes
Kicked OutNo
Primary Tube Gauge16-gauge
Header StyleLong Tube
Stroker ClearancedNo
Collector StyleBall & Socket
BaffledNo
QuantitySold as a kit
Header Fasteners IncludedYes
Oil Pan FinishRed painted
Drain Plug IncludedYes
Dipstick Port (Y/N)No
Header MaterialMild Steel
Collector AttachmentYes
Windage Tray IncludedNo
Oil Pan IncludedYes
Collector Diameter3 in (76.2 mm)
Part FitmentSemi Universal
Reducers IncludedYes
Oxygen SensorNO
Head StyleFactory Heads
Bolts Or Studs IncludedYes
Primary Tube Diameter1.5 in (38.1 mm)
Vendor Part Number42163
Package Qty1
Package TypeEA
