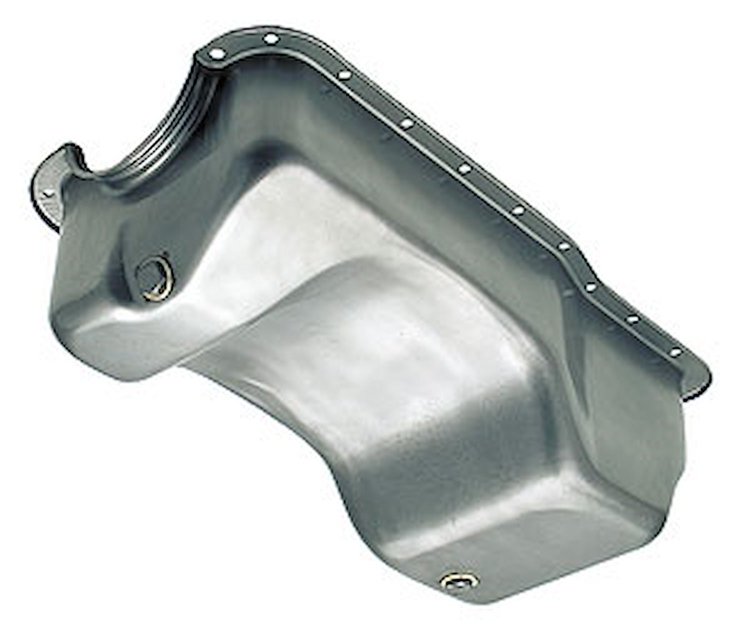

Unplated (Raw) Oil Pan 1983-90 Mustang 302 5.0L

Product Discontinued

TRANS DAPTPART NUMBER: 969-7572

Unplated (Raw) Oil Pan 1983-90 Mustang 302 5.0L

Name: Unplated (Raw) Oil Pan 1983-90 Mustang 302 5.0L
Brand: TRANS DAPT
SKU: 969-7572
Price: 154.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford

Unplated (Raw) Oil Pan

1983-90 Mustang 302 5.0L

Dual Sump

Side Hole 20 x 1.5mm

Oil Pickup: Ford FOAZ-6622-A

Capacity: 4 Quarts

TRANS DAPT 7572 Features:

This raw steel oil pan from Trans-Dapt Performance fits 1983-93 Ford Mustangs with a 5.0L engine, and gives you the freedom to finish the pan in the color or finish that best suits your project.

This pan has 4 Quart oil capacity, and incorporates a 20mm x 1.5 oil level sensor mounting port. If this port will not be used, a plug (Ford E4AZ-6A828A or equivalent) and washer must be purchased separately to block off the port.

Uses Trans-Dapt #9755, or Ford #F0AZ-6622-A oil pump pickup tube. Includes drain plugs. Gaskets, bolts and pick-up tube are not included, and must be purchased separately.

Part TypeOil Pan

BrandTRANS DAPT

Package Height8.63

Package Width12.25

Package Length25.13

Weight8.6 PG

Part CategoryPerformance Parts

Oil Pan Capacity5 quarts

Hardware IncludedNo

Dipstick ProvisionNo

BaffledNo

Sump StyleWet

Pickup IncludedNo

Drain Plug Thread Size (In.)1/2-20

QuantitySold individually

Oil Pan FinishNatural

Oil Pan MaterialSteel

Gaskets IncludedNo

Sump LocationFront

Crank Scraper IncludedNo

Windage Tray IncludedNo

Part FitmentSemi Universal

Kicked OutNo

Stroker ClearancedNo

Vendor Part Number7572

Package Qty1

Package TypeEA
