Silver Slam-Guard Oil Pan 1979-85 Small Block Chevy 305-350
InfoVehicle Info Needed
TRANS DAPTPART NUMBER: 969-8913

Silver Slam-Guard Oil Pan 1979-85 Small Block Chevy 305-350

$21599
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Silver

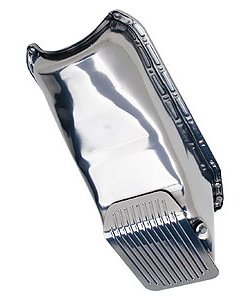

    Silver Slam-Guard Oil Pan
  • 1979-85 Small Block Chevy 305-350
  • 2-Piece Rear Main Seal
  • Passenger Side Dipstick
  • 4-Quart Capacity
  • 0.1875" Thick Skid Plate
  • Protect Your Pan Against Bottoming Out
  • A Must For any Lowered Vehicle

    A Must for Any Lowered Vehicle

    Trans-Dapt Armor Plated Slam Guard Oil Pans are designed for use on lowered street cars or off-road trucks and Jeeps. Each Slam Guard Engine Oil Pan is constructed with a 3/16" thick skid plate to protect against damage from bottoming out. The skid plate is integrated into the pan by removing the sump floor and welding the armor plate into position. Trans-Dapt has machined these Slam Guard Oil Pans from strong, quality materials with choice of chrome plating or black or silver powder coating for durability.

    Show More

    Slam Guard Oil Pans are available for use in 1-piece and 2-piece rear main seal small block Chevy, Windsor-based small block Ford for passenger cars, and Jeep/AMC 304, 360, and 401 V8. Included with each slam guard oil pan is a matching finish magnetic drain plug. Gaskets and hardware sold separately.

Part TypeOil Pan
Product LineTrans Dapt Performance Products Slam-Guard Oil Pans
BrandTRANS DAPT
Package Height9.7
Package Width10.5
Package Length22.7
Weight13.2 PG
Part CategoryPerformance Parts
Oil Pan Capacity4 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledNo
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishSilver painted
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.48 in (88.392 mm)
Gaskets IncludedNo
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedNo
Vendor Part Number8913
Package Qty1
Package TypeEA
