Chrome Oil Pan 1986-2000 Small Block Chevy 305-350
InfoVehicle Info Needed
TRANS DAPTPART NUMBER: 969-9414

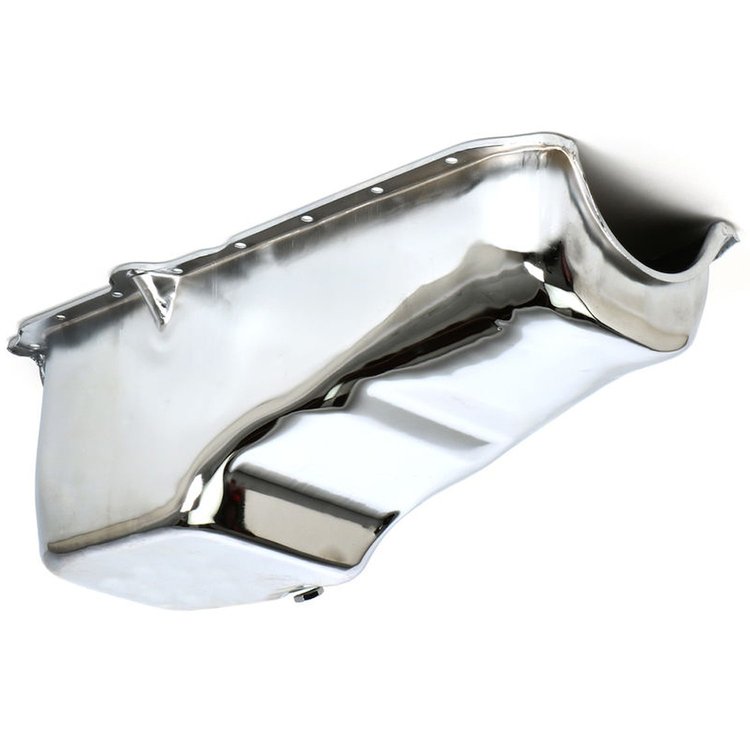

Chrome Oil Pan 1986-2000 Small Block Chevy 305-350

$12499
ShippingShips on 12/07/2026
Lowest PriceLowest Price Guarantee

Items You Need

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28040
$2099$23.99
You Save$3.00
Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

JEGS

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

Part Number : 555-28030
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28045
$1899$20.99
You Save$2.00

Small Block Chevy
    Chrome Oil Pan
  • 1986-2000 Small Block Chevy 305-350
  • 1-Piece Rear Main Seal
  • Not for Target
  • 7.5" Deep
  • Capacity: 4 Quarts
    Will not fit:
  • Chevelle with steering behind crossmember
  • 1962-67 Chevy II, V8 Vega/Monza, or 302 Engines
    Trans-Dapt has designed ready-to-install, bolt-up, OE replacement oil pans with stock depth and capacity to fit most car/truck chassis. Made to original specifications and machined from quality steel, each oil pan has a polished chrome-plated finish to ensure good looks, easy maintenance, and durability. Pans include stock internal baffle and allow reuse of stock oil pump, pickup, and stock-type dipstick. Gasket not included.
Part TypeOil Pan
Product LineTrans Dapt Performance Products OEM Chrome-Plated Steel Oil Pans
BrandTRANS DAPT
Package Height10.2
Package Width11.7
Package Length25.4
Weight9.32 PG
Part CategoryPerformance Parts
Oil Pan Capacity4 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishChrome plated
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.48 in (88.392 mm)
Gaskets IncludedNo
Oil Pan Depth7 in (177.8 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedNo
Vendor Part Number9414
Package Qty1
Package TypeEA
