Breakdown of Included Items

Dimensions

82076-4-BLK Features:

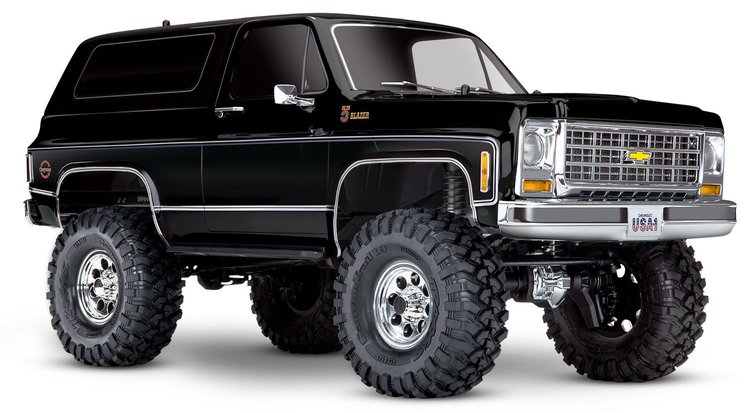

• Officially licensed GM K5 Blazer body
• Traxxas Link-enabled transmitter
• Cruise control for extended trail driving
• Adjustable steering and throttle sensitivity and endpoints
• Fully waterproof trail-tuned XL-5 HV Electronic Speed Control with (5) driving modes: Sport, Race, Training, Trail, and Crawl
• The Titan 21T motor features a reverse rotation, internal cooling fan, and preset gear mesh adjustments
• 2-speed high/low range transmission with remote shifting
• Portal Axles provide 3.140 in. of ground clearance and improve axle geometry to eliminate torque twist
• 1.500 mm thick steel frame rails for increase torsional rigidity
• (4) adjustable wheelbase positions: 300 mm, 312 mm, 324 mm, and 336 mm
• Full-time shaft-driven 4-wheel drive
• Remote-locking front and rear differentials
• 45-degree steering angle with bump steer
• 3-link front suspension with Panhard bar
• Triangulated 4-link rear suspension
• Adjustable GTS coil-over shocks with silver-anodized aluminum bodies
• Replica chrome Rally wheels with hub inserts
• 1.900 in. Canyon Trail tires with S1 rubber compound and pre-installed trail-tuned foam inserts
• Hinged battery strap compartment for easy access and accommodation of different height batteries
• Sealed ball bearings
• Rust-resistant black oxide coated hex hardware used throughout the chassis

Notes:

• Accepts NiMH (4–7 cell) and LiPo (2s–3s) batteries - sold separately
• The transmitter requires (4) AA alkaline batteries - NOT included
• Traxxas EZ-Peak Live Charger is recommended - 430-2971
• *For Traxxas Link use, optional telemetry modules are required - sold separately

*Traxxas Link Apps:
