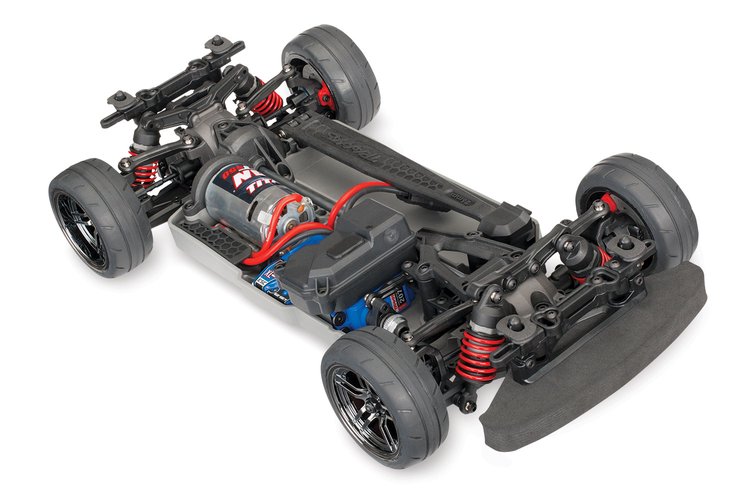

1/10 Scale 4-Tec 2.0 AWD Chassis

Name: 1/10 Scale 4-Tec 2.0 AWD Chassis
Brand: TRAXXAS
SKU: 430-83024-4
Price: 229.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Adjustable chassis accepts standard 200mm bodies

TQ 2.4GHz radio system

Titan 12-Turn 550 modified motor

Powerful XL-5 waterproof electronic speed control

Features:

Traxxas TQ 2.4GHz radio system
Waterproof electronics permit driving in water, mud and snow
Modular fiber-composite low center of gravity (low CG) chassis
Smooth underside resists drag and snags
Angled front bumper improves approach angle
Traxxas #6519 3-channel micro receiver
Waterproof, O-ring sealed receiver box
High-torque waterproof Traxxas #2075 steering servo
Precise servo saver integrated into servo horn
High steering angle option
Powerful Titan 12T 550 modified motor with internal cooling fan
Fixed gear mesh with 11 different gearing positions
Molded wire retainer keeps motor wires secure
30+mph with included optional pinion gear
High-performance waterproof XL-5 electronic speed control
Innovative watersealed design
Three drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode - 50% forward / brake / 50% reverse (patented)
12-Turn motor limit for 550 size motors
15-Turn motor limit for 540 size motors
Integrated on/off switch
Traxxas EZ-Set one-button setup
LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
High-efficiency MOSFET transistors
Adjustable body mounts for custom bodies
Speed control and receiver are securely fastened to chassis
Built brushless ready to make upgrading to Velineon® power simple
Sealed, silicone-filled differentials
Low center of gravity (Low CG) chassis
Fully adjustable oil-filled Ultra Shocks with X-ring technology
Red powder coated shock springs feature a responsive spring rate
Adjustable battery hold down
Full-time shaft driven 4-wheel drive
Aluminum center driveshaft
Rubber-sealed ball bearings
Black chrome wheels with lug nut detail
High-performance tires with long-wearing compound
Replica brake discs incorporate standard 12mm wheel hexes

Specs:

Length: 14.94 Inches (379mm)
Front Track: 7.7 Inches (196mm)
Rear Track: 7.9 Inches (200mm)
Center Ground Clearance: 0.3 Inches (9mm)
Weight: 2.81lbs (1.28kg)
Height (overall): 2.43 Inches (62mm)
Wheelbase: 10.1 Inches (256mm)
Shock Length: Short (front and rear)
Tire Diameter: 2.6 Inches (66mm)
Tire Width (front): 1.0 Inches (26mm)
Tire Width (rear): 1.2 Inches (30mm)
Wheel Diameter: 2.1 Inches (53mm)
Speed Control Type: XL-5 Electronic Speed Control
Motor (electric): Titan 12T 550 (12-Turn)
Overall Drive Ratio: 9.49
Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
Gear Pitch: 48
Chassis Structure/Material: Molded Tub / Nylon Composite
Drive System: Shaft-Driven, Direct Drive 4WD
Steering: Dual-Bellcrank
Radio System: TQ™ 2.4GHz Radio with #6519 3-Channel Micro Receiver
Skill Level: 1
Top Speed: 30+mph*
Battery Tray: 158mm long / 46mm wide / 23 or 26mm high
Required Items (Sold Separately): 4 "AA" Batteries (for transmitter), Charger, 6 or 7-Cell NiMH or 2-cell LiPo Battery

The Traxxas 4-Tec 2.0 AWD Chassis Models you with the option to buid the car you want. Just pick your speed then add your own body, battery and carger of choice for a completely customizable on road experience. Body mounts are adjustable for easy installation of popular 200mm bodies. Body posts may be shifted forward and backward and side to side to accommodate most pre-drilled mounting holes. A set of fixed body mounts also comes with the vehicle. Also Lengthen or shorten the wheelbase for the perfect body fit. With slight modification, rear suspension arms can be moved 3mm in either direction.
