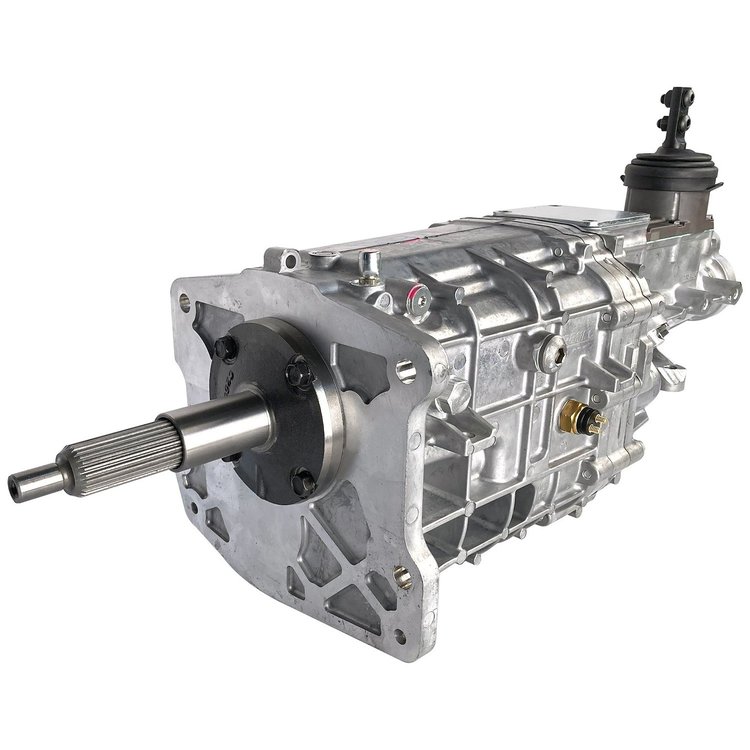

TCET17765 TKX 5-Speed Manual Transmission, Ford
InfoVehicle Info Needed
TREMECPART NUMBER: 702-TCET17765

TCET17765 TKX 5-Speed Manual Transmission, Ford

$2,89500
Truck Freight
ShippingShips on 01/15/2027
Lowest PriceLowest Price Guarantee

Items You Need

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

MOBIL 1

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

Part Number : 652-112980-1
$1169$12.99
You Save$1.30
Brake and Parts Cleaner [14 oz. Aerosol Can]

JEGS

Brake and Parts Cleaner [14 oz. Aerosol Can]

Part Number : 555-72312
$699$7.99
You Save$1.00
2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$19599$269.99
You Save$74.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20

Ford
TKX 5-Speed Manual Transmission
  • Ford
  • 1 1/8x26
  • .68 5th Gear
  • 600 ft.-lbs. of TQ Capacity
  • 7,500 RPM Shifts

    Tremec TCET 17765 Features:

    Tremec is pleased to announce the release of the new TKX, a 5-speed RWD manual transmission developed solely for the aftermarket. For the development of the new transmission, Tremec engineers took a forward-looking approach to finding the best and most efficient solution. This included universal packaging, excellent shifting performance, and extreme durability. The end result is superior shift-ability with smooth shifts at high RPMs through the use of multi-cone synchronizers and hybrid synchronizer rings. At the same time, noise, vibration and harshness (NVH) performance is optimized with a gear layout to best control stress levels, while providing structural stiffness with a ribbed, 3-piece aluminum housing. Durability is further optimized with oversized gear widths, gaskets at all flanges and caged needle bearings in all gear positions. Whether restoring or upgrading a classic muscle car or a 1930s-era roadster coupe, the new Tremec TKX 5-speed RWD manual transmission delivers a top-quality drivetrain solution.

    • Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications
    • Torque Capacity: 600
    • Input Shaft Diameter: 1.125
    • Input Shaft Shaft Quantity: 26
    • Output Shaft Spline Quantity: 31
    • Bellhousing Included: No
    • Case Material: Aluminum
    • Number of Gears: Five
    • First Gear Ratio: 2.87:1
    • Second Gear Ratio: 1.89:1
    • Third Gear Ratio: 1.28:1
    • Forth Gear Ratio: 1.00:1
    • Fifth Gear Ratio: 0.68:1
    • Reverse Gear Ratio: 2.56:1
    • Shifter Included: Yes
    • Yoke Included: No
    • Yoke Style: Slip-on
    • Approved Fluids:
      • GM Synchromesh (Part Number: 88900333)
      • Pennzoil (Part Number: 3501)
      • DEXRON/MERCON ATF (non-synthetic)
      • Mobil 1 ATF
    • Your Aftermarket Performance Transmission Solution

      Tremec TKX 5-Speed Manual Transmissions are manufactured with one thing in mind, performance! This new and improved design is more compact and provides clearance in most transmission tunnels without floor modifications. They feature a three-piece aluminum housing, special-grade steel gears and shafts, and multi-cone synchronizers and hybrid synchronizer rings, all of which deliver superior strength and smooth, precise shifting. Available in multiple GM and Ford case patterns and input configurations, and gear ratios.

    Part TypeManual Transmission
    Product LineTremec TKX 5-Speed Manual Transmissions
    BrandTREMEC
    Package Height14.7
    Package Width20.2
    Package Length34.6
    Weight119.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberTCET17765
    Package Qty1
    Package TypeEA
