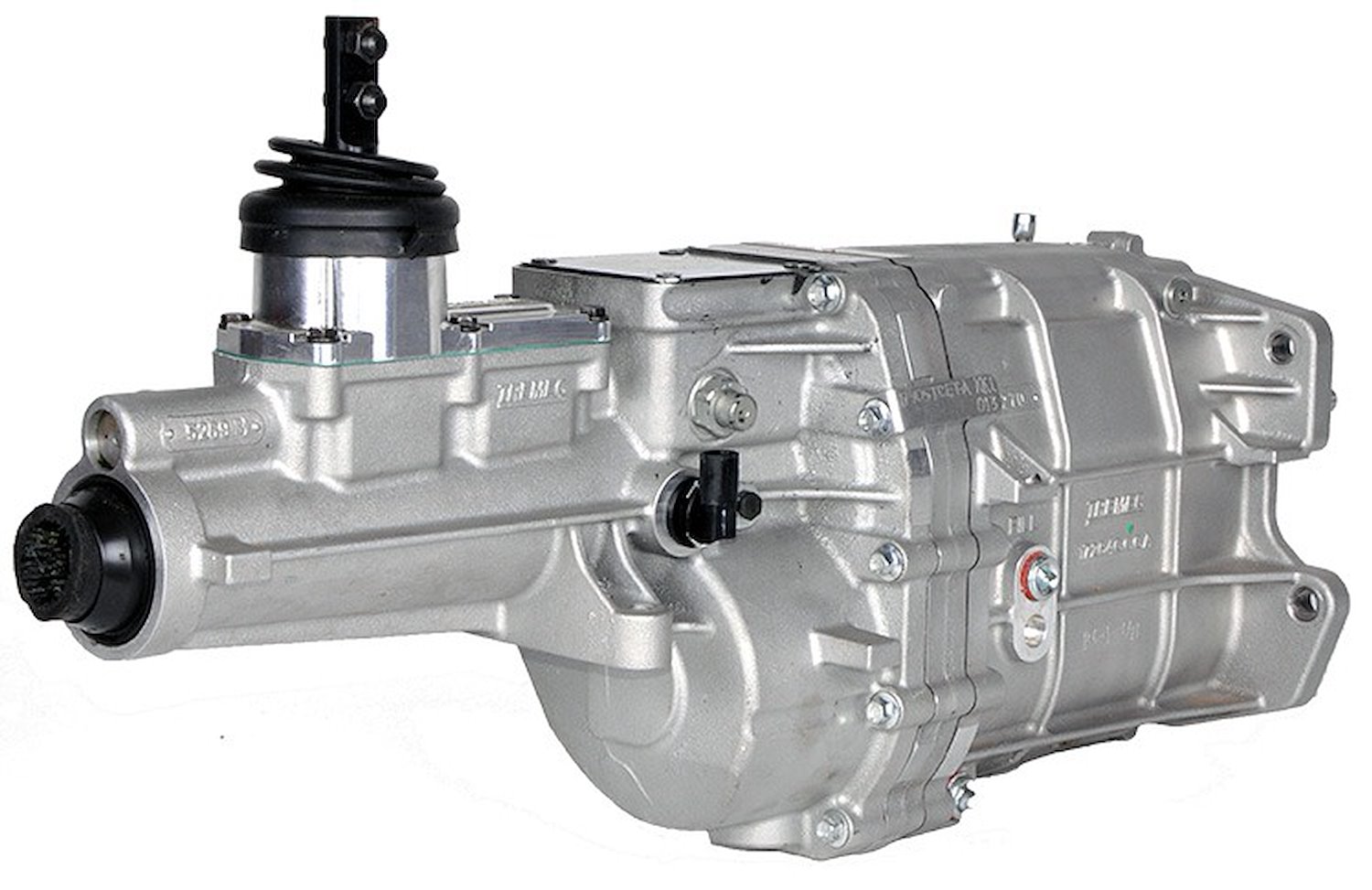

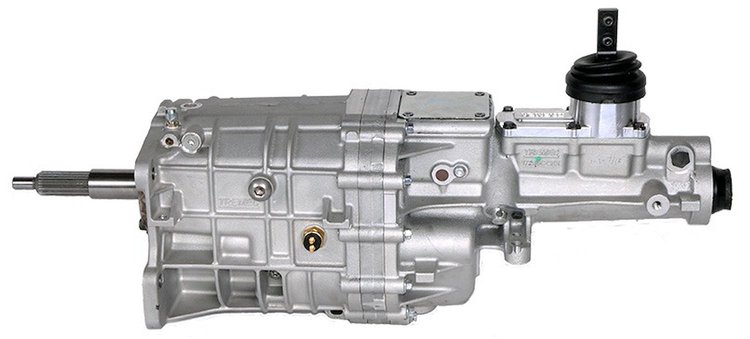

TCET18086 TKX 5-Speed Manual Transmission Ford 1-1/16 in. x 10-Spline

Name: TCET18086 TKX 5-Speed Manual Transmission Ford 1-1/16 in. x 10-Spline
Brand: TREMEC
SKU: 702-TCET18086
Price: 2895.00 USD
Availability: InStock

^$2,895⁰⁰

Truck Freight

3 left in stock

Ships Today

Lowest Price Guarantee

Ford

TKX 5-Speed Manual Transmission

Ford V8

1-1/16 in. x 10-Spline Input

0.72 5th Gear Ratio

600 ft.-lbs. TQ Rating

Sold Individually

Dimensions

Tremec TCET18086 Features:

Capable of 8,000 RPM engine speeds with shifts at 7,500 RPMs
A compact end-loaded design for clearance in most transmission tunnels without floor modifications
Three-piece aluminum case housing for increased structural stiffness
Gaskets at all flanges to eliminate fluid leaks
Multi-cone synchronizers and hybrid synchronizer rings made from sintered bronze and carbon
Special-grade steel (ASTM 4615) gears and shafts increase the torque carrying capacity
High-performance short-throw billet-aluminum shifter delivers clean, crisp shifts and isolates road noise
Internal three-rail shift system and steel shift forks
Oversized gear widths prolong the gear life
Caged needle bearings in all gear positions
Gear ratios: 1st: 3.27, 2nd: 1.98, 3rd: 1.34, 4th: 1.00, 5th: 0.72, R: 3.00
Approved Fluids:
- GM Synchromesh (Part Number: 88900333)
- Pennzoil (Part Number: 3501)
- DEXRON/MERCON ATF (non-synthetic)
- Mobil 1 ATF

Tremec Warranty

Your Aftermarket Performance Transmission Solution

Tremec TKX 5-Speed Manual Transmissions are manufactured with one thing in mind, performance! This new and improved design is more compact and provides clearance in most transmission tunnels without floor modifications. They feature a three-piece aluminum housing, special-grade steel gears and shafts, and multi-cone synchronizers and hybrid synchronizer rings, all of which deliver superior strength and smooth, precise shifting. Available in multiple GM and Ford case patterns and input configurations, and gear ratios.

Part TypeManual Transmission

Product LineTremec TKX 5-Speed Manual Transmissions

BrandTREMEC

Package Height13.0

Package Width19.0

Package Length34.75

Weight120.0 PG

Part CategoryPerformance Parts

Number Of Gears5

Max Rated Rpm8000

4th Gear Ratio1.00

Reverse Gear Ratio3.00
