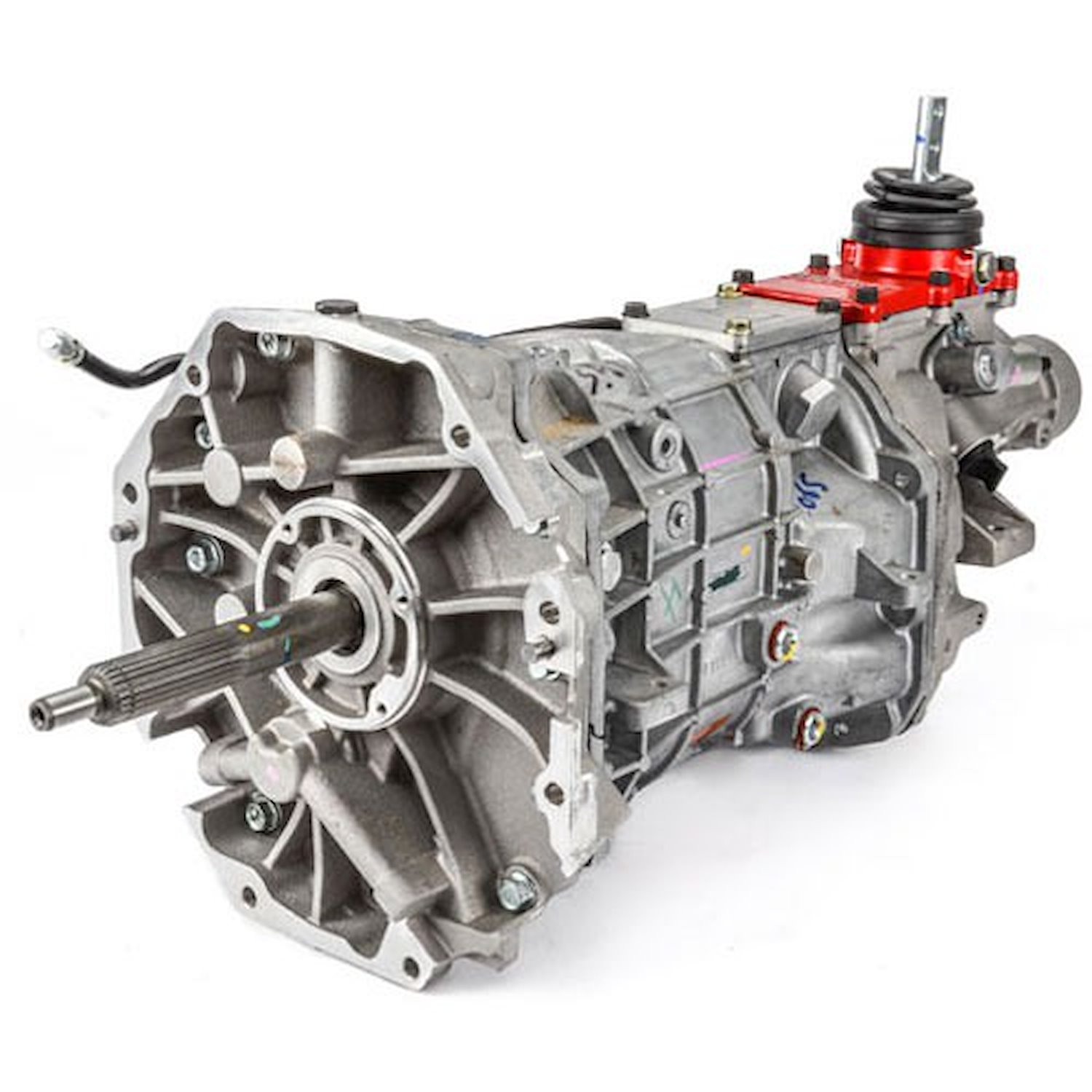

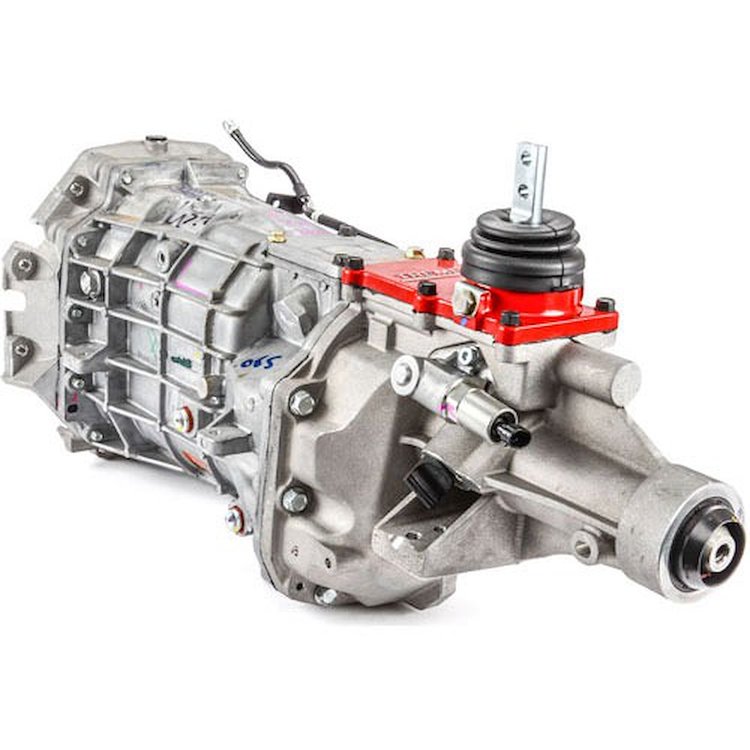

TUET11009 T-56 Magnum 6-Speed Transmission
InfoVehicle Info Needed
TREMECPART NUMBER: 702-TUET11009

TUET11009 T-56 Magnum 6-Speed Transmission

$3,79999
Truck Freight
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM
T-56 Magnum 6-Speed Transmission
  • Engine: GM LS
  • Torque Capacity: 700
  • Input/Output Spline: 26/31
  • 2.66 1st Gear
  • 1.78 2nd Gear
  • 1.30 3rd Gear
  • 1.00 4th Gear
  • 0.80 5th Gear
  • 0.63 6th Gear
  • 2.90 Reverse

    Tremec TUET11009 Features:

    • Stronger Input Shaft
    • Can Withstand up to 700 ft-lbs of Torque
    • Increased Face Widths
    • Redesigned Shift Forks
    • 2-Piece Laser-Beam Welded Construction
    • Modified Transmission Case
    • Input Shaft Diameter: 1.125 in.
    • Approved Fluids:
      • Dexron III Automatic Transmission Fluid (ATF)
      • Mobil 1 ATF

      Tremec TUET 11009 (TUET11009) Note:

      This transmission is not an OEM replacement for GM vehicles originally equipped with a Tremec T-56

    • Part TypeManual Transmission
    BrandTREMEC
    Package Height15.5
    Package Width19.0
    Package Length39.5
    Weight148.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
