Vehicle Info NeededTREMECPART NUMBER: 702-TUET11011

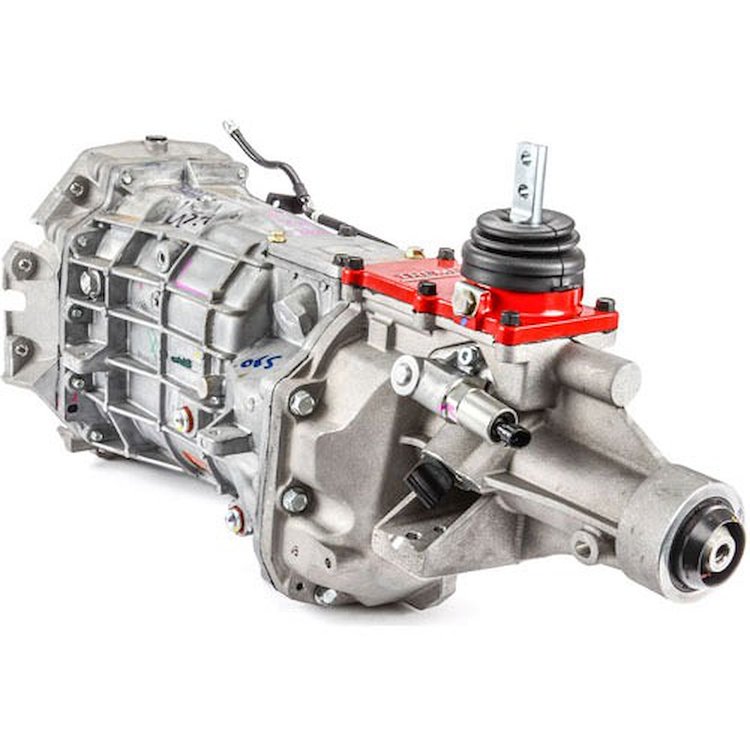

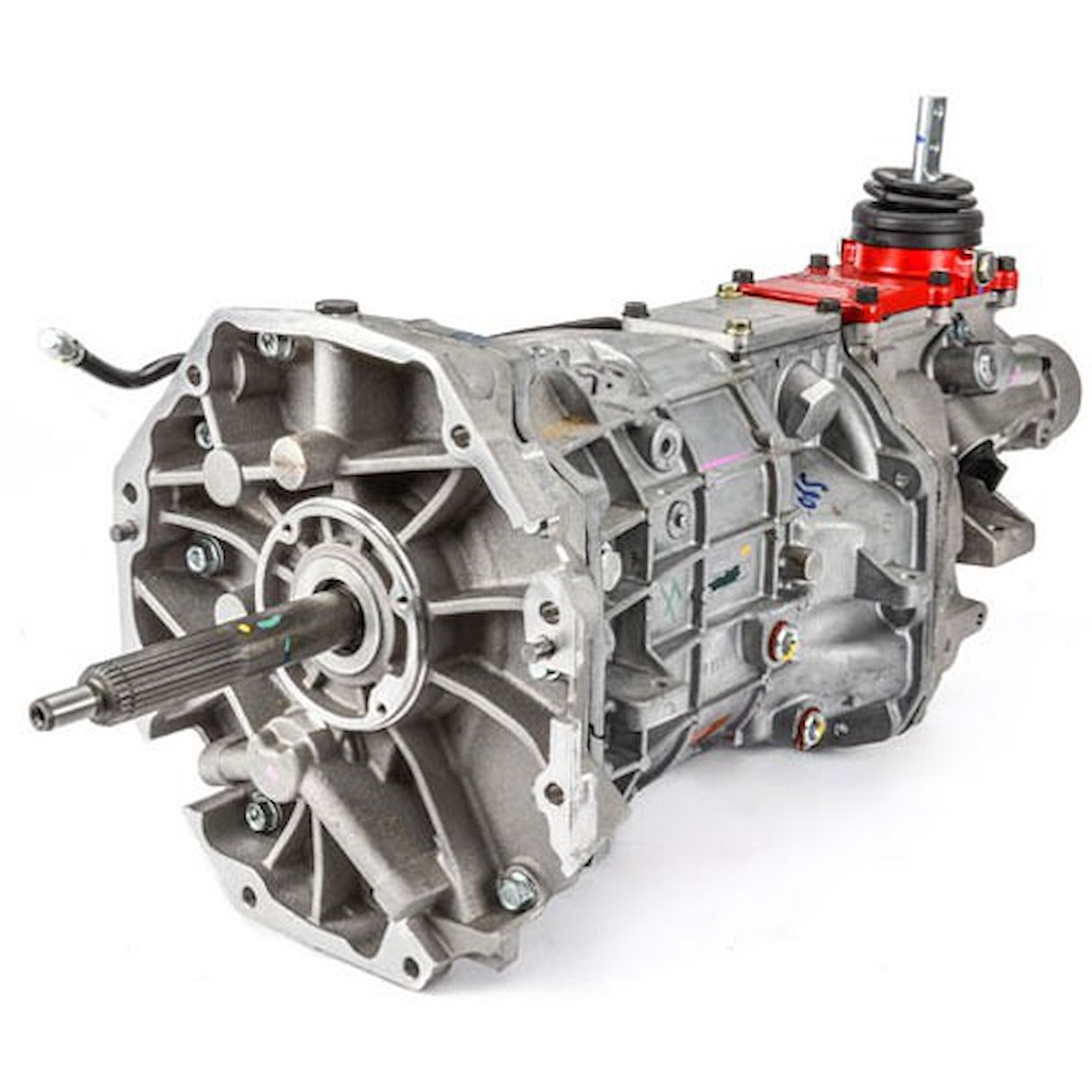

TUET11011 T-56 Magnum 6-Speed Transmission
$3,54500
Truck Freight
Ships on Sep 15, 2026
Lowest Price GuaranteeFord
T-56 Magnum 6-Speed TransmissionEngine: Ford Modular Torque Capacity: 700 Input/Output Spline: 26/31 2.97 1st Gear 2.10 2nd Gear 1.46 3rd Gear 1.00 4th Gear 0.74 5th Gear 0.50 6th Gear 2.90 Reverse
Tremec TUET11011 T-56 Magnum 6-Speed Transmission Features:
- Stronger 1.125 in. Input Shaft
- Can Withstand up to 700 ft-lbs of Torque
- Increased Face Widths
- Redesigned Shift Forks
- 2-Piece Laser-Beam Welded Construction
- Modified Transmission Case
- Approved Fluids:
- Dexron III Automatic Transmission Fluid (ATF)
- Mobil 1 ATF
Part TypeManual Transmission
BrandTREMEC
Package Height0.1
Package Width4.0
Package Length33.5
Weight200.0 PG
Part CategoryPerformance Parts
Number Of Gears6
Max Rated Rpm7800
4th Gear Ratio1.00
Reverse Gear Ratio2.90
Shifter Positions3
Fluid Capacity3.66 qt.
Dry Weight140 lbs.
OverdriveDouble
2nd Gear Ratio2.10
1st Gear Ratio2.97
Output Spline Quantity31
3rd Gear Ratio1.46
Clutch Release TypeHydraulic or Mechanical
Speedometer OutputMechanical (7-tooth) and Electronic (12-tooth)
Input Spline Quantity26
Torque Capacity700 lb-ft
Part FitmentSemi Universal
Case MaterialAluminum
6th Gear Ratio0.50
ApplicationFord V8
Recommended FluidTREMEC HP-MTF, Dexron-III or Mobil 1 Synthetic ATF
Product LineTREMEC T-56 Magnum
5th Gear Ratio0.74
Package Qty1
Package TypeEA
