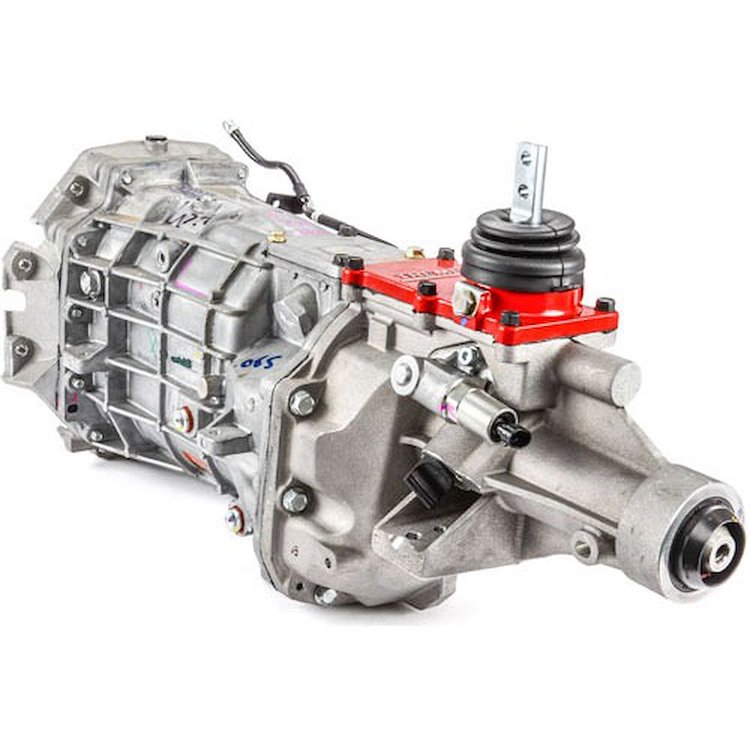

TUET11012 T-56 Magnum 6-Speed Transmission for GM, Input/Output Spline: 26/31
InfoVehicle Info Needed
TREMECPART NUMBER: 702-TUET11012

TUET11012 T-56 Magnum 6-Speed Transmission for GM, Input/Output Spline: 26/31

$3,54500
Truck Freight
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

MOBIL 1

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

Part Number : 652-112980-1
$1169$12.99
You Save$1.30
Brake and Parts Cleaner [14 oz. Aerosol Can]

JEGS

Brake and Parts Cleaner [14 oz. Aerosol Can]

Part Number : 555-72312
$699$7.99
You Save$1.00
2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$19599$269.99
You Save$74.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20

GM
T-56 Magnum 6-Speed Transmission
  • GM
  • Input/Output Spline: 26/31
  • Torque Capacity: 700
  • 1st Gear Ratio: 2.97
  • 2nd Gear Ratio: 2.10
  • 3rd Gear Ratio: 1.46
  • 4th Gear Ratio: 1.00
  • 5th Gear Ratio: 0.74
  • 6th Gear Ratio: 0.50

    Tremec TUET11012 Features:

    The T-56 Magnum, at the forefront of Tremec's high-performance lineup, seamlessly integrates cutting-edge OEM technology with the most sought-after attributes of our TKO model. The Magnum effortlessly handles up to 700 ft.-lbs. of tire-shredding torque while maintaining sophistication, delivering swift, precise gear shifts, and an immensely gratifying driving encounter. Recognized initially as the Tr-6060 in its original equipment form, the Magnum represents an aftermarket iteration of the same transmission systems found in many of today's most esteemed factory supercars.

    • Gear Qty: 6-speed
    • Bellhousing Included: No
    • Case Material: Aluminum
    • Clutch Fork Included: No
    • Input Shaft Diameter: 1.125 In.
    • Input Shaft Spline Quantity: 26
    • Output Shaft Spline Quantity: 31
    • Pivot Ball Included: No
    • Shifter Included: Yes
    • Yoke Included: No
    • Yoke Style: Slip On
    • Approved Fluids:
      • Dexron III Automatic Transmission Fluid (ATF)
      • Mobil 1 ATF
  • Part TypeManual Transmission
    BrandTREMEC
    Package Height0.1
    Package Width4.0
    Package Length33.5
    Weight146.0 PG
    Part CategoryPerformance Parts
    Number Of Gears6
    Max Rated Rpm7800
    4th Gear Ratio1.00
    Reverse Gear Ratio2.90
    Shifter Positions3
    Fluid Capacity3.66 qt.
    Dry Weight140 lbs.
    OverdriveDouble
    2nd Gear Ratio2.10
    1st Gear Ratio2.97
    Output Spline Quantity31
    3rd Gear Ratio1.46
    Clutch Release TypeHydraulic or Mechanical
    Speedometer OutputMechanical (7-tooth) and Electronic (12-tooth)
    Input Spline Quantity26
    Torque Capacity700 lb-ft
    Part FitmentSemi Universal
    Case MaterialAluminum
    6th Gear Ratio0.50
    ApplicationGM V8
    Recommended FluidTREMEC HP-MTF, Dexron-III or Mobil 1 Synthetic ATF
    Product LineTREMEC T-56 Magnum
    5th Gear Ratio0.74
    Package Qty1
    Package TypeEA
