TREMECPART NUMBER: 702-TUET11940

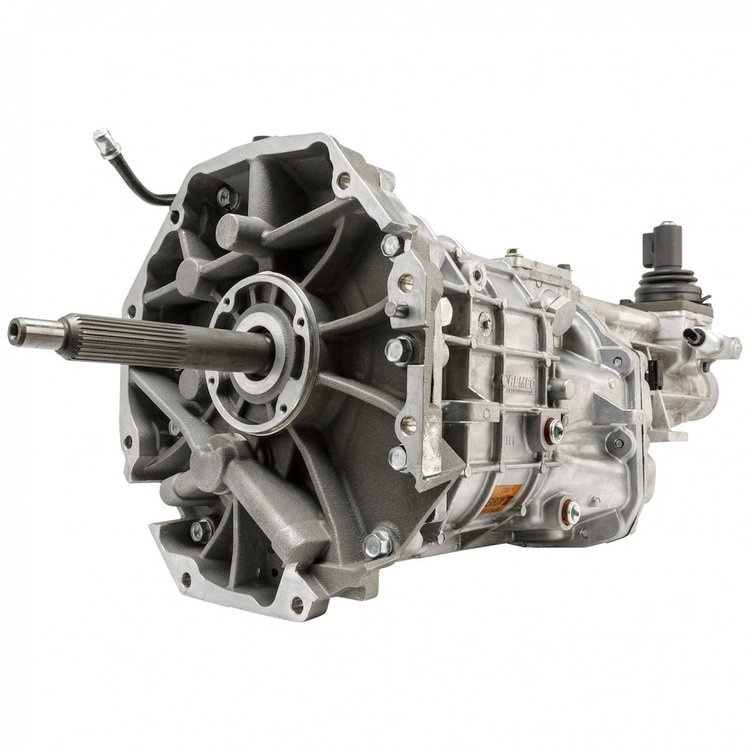

TUET11940 T-56 Magnum XL 6-Speed Transmission, Input/Output Spline: 26/31
$4,29500
Truck Freight
Universal Application
T-56 Magnum XL 6-Speed TransmissionEngine: Non-Specific Torque Capacity: 700 Input/Output Spline: 26/31 2.97 1st Gear 2.10 2nd Gear 1.46 3rd Gear 1.00 4th Gear 0.80 5th Gear 0.63 6th Gear 2.90 Reverse
Tremec TUET11940 Features:
The Magnum XL is an extension of the revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum’s brute strength and sophistication but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended-length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications.
- Input Shaft Diameter: 1.125
- Bellhousing Included: No
- Case Material: Aluminum
- Number of Gears: 6
- Shifter Included: Yes
- Yoke Included: No
- Yoke Style: Slip-on
- Approved Fluids:
- Dexron III Automatic Transmission Fluid (ATF)
- Mobil 1 ATF
Part TypeManual Transmission
BrandTREMEC
Package Height22.0
Package Width25.0
Package Length46.0
Weight200.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
