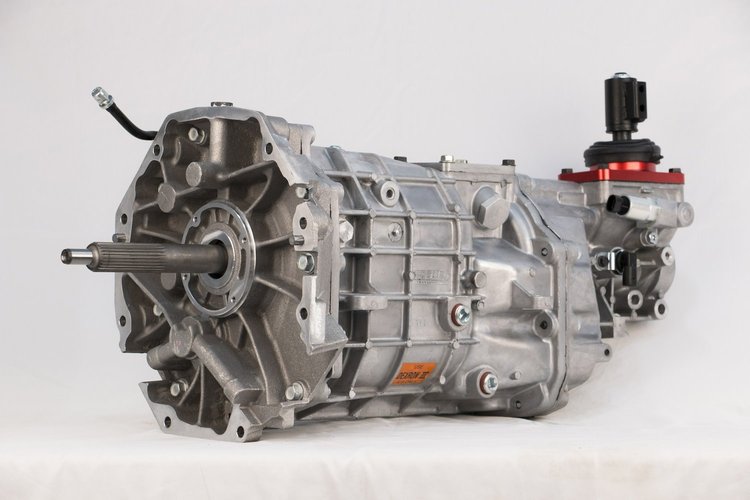

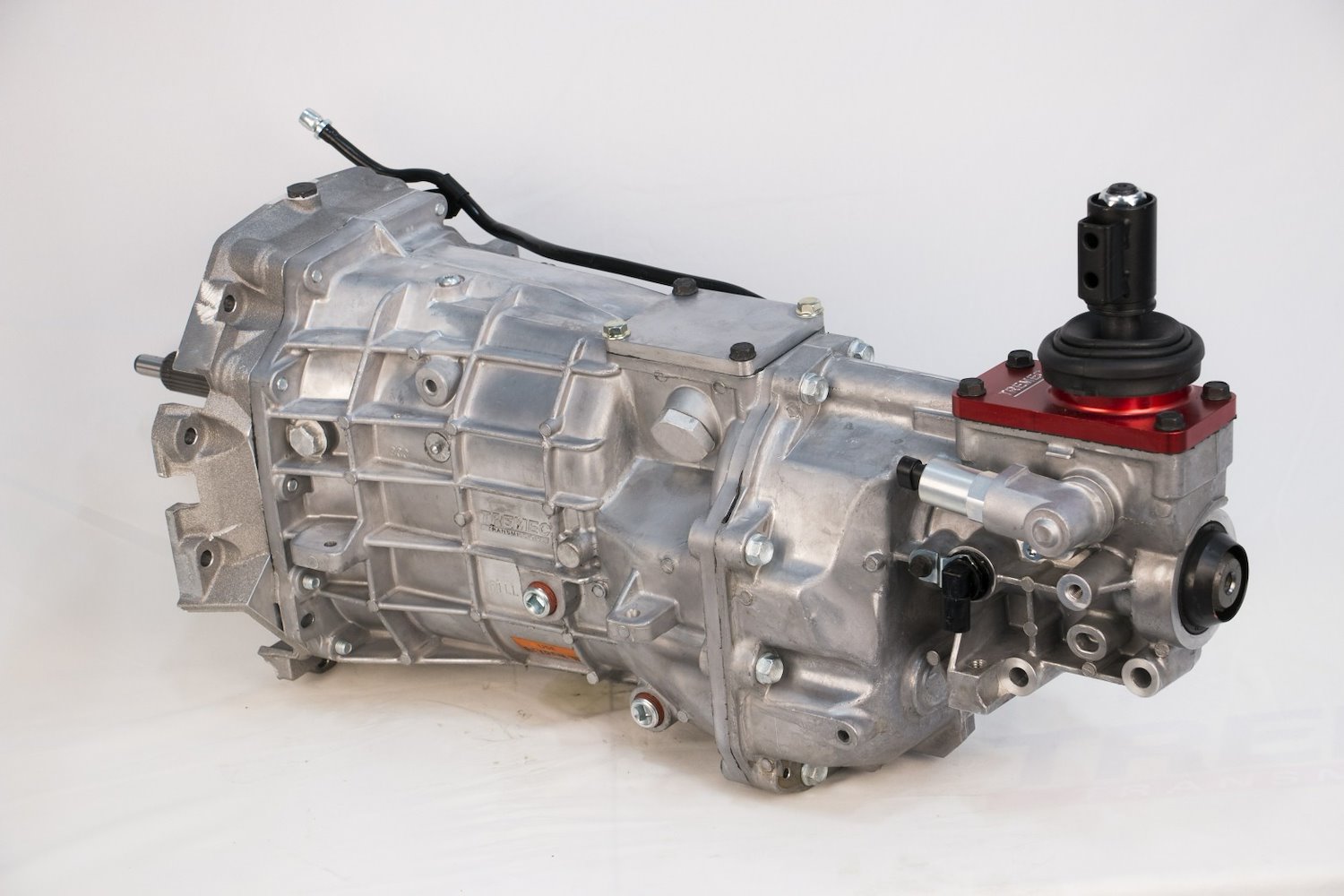

TUET16884 T-56 Magnum 6-Speed Transmission, Ford Modular, Input/Output Spline: 26/31
InfoVehicle Info Needed
TREMECPART NUMBER: 702-TUET16884

TUET16884 T-56 Magnum 6-Speed Transmission, Ford Modular, Input/Output Spline: 26/31

$3,54500
Truck Freight
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford
T-56 Magnum 6-Speed Transmission
  • Engine: Ford Modular
  • Torque Capacity: 700
  • Input/Output Spline: 26/31
  • 2.97:1 1st Gear
  • 2.10:1 2nd Gear
  • 1.46:1 3rd Gear
  • 1.00:1 4th Gear
  • 0.80 5th Gear
  • 0.63 6th Gear
  • 2.90 Reverse

    Tremec TUET16884 Features:

    The centerpiece of Tremec’s high-performance line-up, the Magnum 6-speed takes our state-of-the-art OEM technology and pairs it with the most popular flexibility features of the all-business TKO. The result is a double-overdrive transmission that easily tolerates up to 700 ft-lb. of torque, delivers unbelievable sophistication, and is far more flexible than any other 6-speed in the market. Known in its OE form as the TR-6060, the Magnum is an aftermarket variant of the same transmission found in many of today’s most revered factory muscle cars.

    • Stronger Input Shaft
    • Can Withstand up to 700 ft-lbs of Torque
    • Increased Face Widths
    • Redesigned Shift Forks
    • 2-Piece Laser-Beam Welded Construction
    • Bellhousing Included: No
    • Case Material: Aluminum
    • Number of Gears: Six
    • Shifter Included: Yes
    • Yoke Included: No
    • Yoke Style: Slip On
    • of-the-art OEM technology and pairs it with the most popular flexibility features of the all-business TKO. The result is a double-overdrive transmission that easily tolerates up to 700 ft-lb. of torque, delivers unbelievable sophistication, and is far more flexible than any other 6-speed in the market. Known in its OE form as the TR-6060, the Magnum is an aftermarket variant of the same transmission found in many of today’s most revered factory muscle cars.

      • Stronger Input Shaft
      • Can Withstand up to 700 ft-lbs of Torque
      • Increased Face Widths
      • Redesigned Shift Forks
      • 2-Piece Laser-Beam Welded Construction
      • Bellhousing Included: No
      • Case Material: Aluminum
      • Number of Gears: Six
      • Shifter Included: Yes
      • Yoke Included: No
      • Yoke Style: Slip On
    • The Ultimate Manual Transmission

      Tremec Magnum XL 6-Speed Transmissions have all the performance capabilities and features of the original Magnum Transmissions, but its extended-length tail section eliminates the semi-remote shifter location.
    Part TypeManual Transmission
    Product LineTremec Magnum XL 6-Speed Manual Transmissions
    BrandTREMEC
    Package Height15.0
    Package Width17.0
    Package Length39.0
    Weight172.0 PG
    Part CategoryPerformance Parts
    Number Of Gears6
    Max Rated Rpm7800
    4th Gear Ratio1.00
    Reverse Gear Ratio2.90
    Shifter Positions3
    Fluid Capacity3.66 qt.
    Dry Weight140 lbs.
    OverdriveDouble
    2nd Gear Ratio2.10
    1st Gear Ratio2.97
    Output Spline Quantity31
    3rd Gear Ratio1.46
    Clutch Release TypeHydraulic or Mechanical
    Speedometer OutputMechanical (7-tooth) and Electronic (12-tooth)
    Input Spline Quantity26
    Torque Capacity700 lb-ft
    Part FitmentSemi Universal
    Case MaterialAluminum
    6th Gear Ratio0.63
    ApplicationFord V8
    Recommended FluidTREMEC HP-MTF, Dexron-III or Mobil 1 Synthetic ATF
    Product LineTREMEC T-56 Magnum
    5th Gear Ratio0.80
    Vendor Part NumberTUET 16884
    Package Qty1
    Package TypeEA
