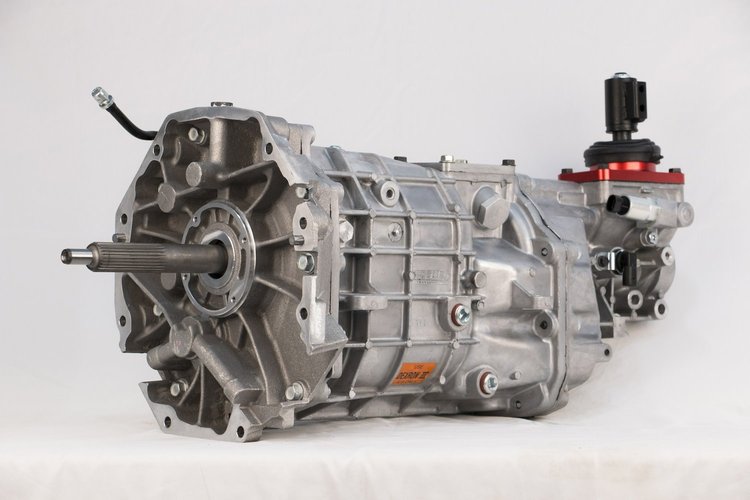

TUET16885 T-56 Magnum 6-Speed Transmission
InfoVehicle Info Needed
TREMECPART NUMBER: 702-TUET16885

TUET16885 T-56 Magnum 6-Speed Transmission

$3,54500
Truck Freight
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

MOBIL 1

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

Part Number : 652-112980-1
$1169$12.99
You Save$1.30
Brake and Parts Cleaner [14 oz. Aerosol Can]

JEGS

Brake and Parts Cleaner [14 oz. Aerosol Can]

Part Number : 555-72312
$699$7.99
You Save$1.00
2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$19599$269.99
You Save$74.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20

GM
T-56 Magnum 6-Speed Transmission
  • Engine: GM LS
  • Torque Capacity: 700
  • Input/Output Spline: 26/31
  • 2.97 1st Gear
  • 2.10 2nd Gear
  • 1.46 3rd Gear
  • 1.00 4th Gear
  • 0.74 5th Gear
  • 0.63 6th Gear
  • 2.90 Reverse

    Tremec TUET16885 Features:

    • Stronger Input Shaft
    • Can Withstand up to 700 ft-lbs of Torque
    • Increased Face Widths
    • Redesigned Shift Forks
    • 2-Piece Laser-Beam Welded Construction
    • Modified Transmission Case
    • Approved Fluids:
      • Dexron III Automatic Transmission Fluid (ATF)
      • Mobil 1 ATF
    • The Ultimate Manual Transmission

      Tremec Magnum XL 6-Speed Transmissions have all the performance capabilities and features of the original Magnum Transmissions, but its extended-length tail section eliminates the semi-remote shifter location.
    Part TypeManual Transmission
    Product LineTremec Magnum XL 6-Speed Manual Transmissions
    BrandTREMEC
    Package Height16.0
    Package Width16.5
    Package Length40.25
    Weight180.0 PG
    Part CategoryPerformance Parts
    Number Of Gears6
    Max Rated Rpm7800
    4th Gear Ratio1.00
    Reverse Gear Ratio2.90
    Shifter Positions3
    Fluid Capacity3.66 qt.
    Dry Weight140 lbs.
    OverdriveDouble
    2nd Gear Ratio2.10
    1st Gear Ratio2.97
    Output Spline Quantity31
    3rd Gear Ratio1.46
    Clutch Release TypeHydraulic or Mechanical
    Speedometer OutputMechanical (7-tooth) and Electronic (12-tooth)
    Input Spline Quantity26
    Torque Capacity700 lb-ft
    Part FitmentSemi Universal
    Case MaterialAluminum
    6th Gear Ratio0.63
    ApplicationGM V8
    Recommended FluidTREMEC HP-MTF, Dexron-III or Mobil 1 Synthetic ATF
    Product LineTREMEC T-56 Magnum
    5th Gear Ratio0.80
    Vendor Part NumberTUET 16885
    Package Qty1
    Package TypeEA
