Vehicle Info NeededTREMECPART NUMBER: 702-TUET17638

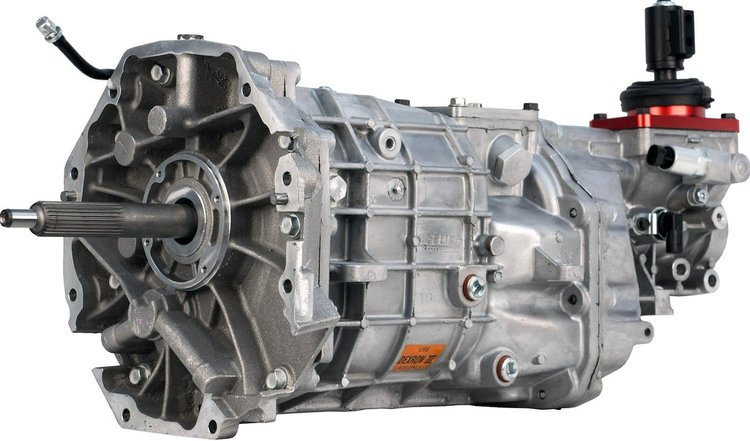

TUET17638 Magnum-F Manual Transmissions for 1998-2002 Chevrolet Camaro, Pontiac Firebird
$3,54500
Truck Freight
Ships on Sep 08, 2026
Lowest Price GuaranteeGM
Magnum-F 6-Speed TransmissionEngine: GM 1998-2002 Chevy Camaro, Pontiac Firebird Input/Output Spline: 26/31 2.97 1st Gear 2.10 2nd Gear 1.46 3rd Gear 1.00 4th Gear 0.74 5th Gear 0.50 6th Gear 2.90 Reverse
Tremec TUET17638 Magnum-F 6-Speed Transmission Features:
- Stronger 1.125 in. Input Shaft
- Can Withstand up to 700 ft-lbs of Torque
- Increased Face Widths
- Redesigned Shift Forks
- 2-Piece Laser-Beam Welded Construction
- Modified Transmission Case
- Approved Fluids:
- Dexron III Automatic Transmission Fluid (ATF)
- Mobil 1 ATF
Part TypeManual Transmission
BrandTREMEC
Package Width50.0
Weight50.0 PG
Part CategoryPerformance Parts
Number Of Gears6
Max Rated Rpm7800
4th Gear Ratio1.00
Reverse Gear Ratio2.90
Shifter Positions1
Fluid Capacity3.66 qt.
Dry Weight140 lbs.
OverdriveDouble
2nd Gear Ratio2.10
1st Gear Ratio2.97
Output Spline Quantity31
3rd Gear Ratio1.46
Clutch Release TypeHydraulic
Speedometer OutputElectronic (16-tooth)
Input Spline Quantity26
Torque Capacity700 lb-ft
Part FitmentDirect Fit
Case MaterialAluminum
6th Gear Ratio0.50
ApplicationGM 4th-Gen F-Body (LS1/LS2 bellhousing pattern)
Recommended FluidTREMEC HP-MTF, Dexron-III or Mobil 1 Synthetic ATF
Product LineTREMEC Magnum F
5th Gear Ratio0.74
Vendor Part NumberTUET 17638
Package Qty1
Package TypeEA
