TUET18132 Tremec Magnum XL 6-Speed Transmission, For GM Engines, 2.97 First Gear Ratio
InfoVehicle Info Needed
TREMECPART NUMBER: 702-TUET18132

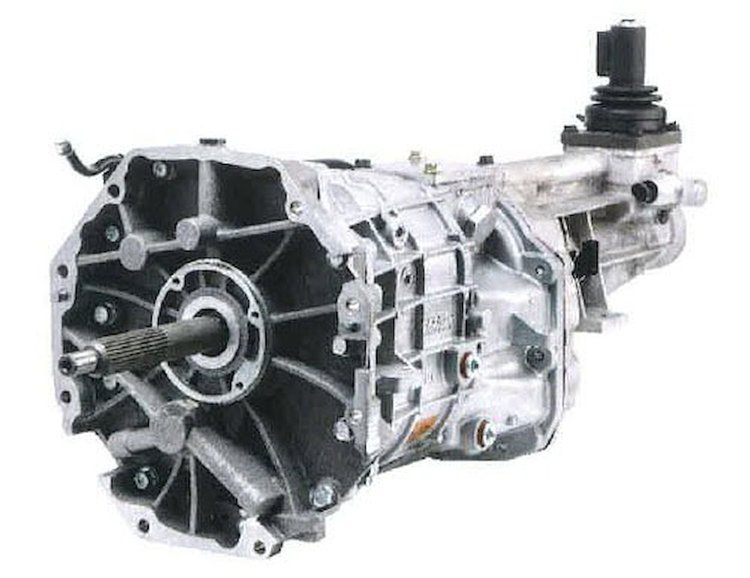

TUET18132 Tremec Magnum XL 6-Speed Transmission, For GM Engines, 2.97 First Gear Ratio

$3,69500
Truck Freight
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

MOBIL 1

Synthetic Multi-Vehicle Automatic Transmission Fluid 1 Qt. Bottle

Part Number : 652-112980-1
$1169$12.99
You Save$1.30
Brake and Parts Cleaner [14 oz. Aerosol Can]

JEGS

Brake and Parts Cleaner [14 oz. Aerosol Can]

Part Number : 555-72312
$699$7.99
You Save$1.00
2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$19599$269.99
You Save$74.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20

GM
Magnum XL 6-Speed Transmission
  • GM Engines
  • Input/Output Spline: 26/31
  • Torque Capacity: 700
  • 1st Gear: 2.97
  • 2nd Gear: 2.10
  • 3rd Gear: 1.46
  • 4th Gear: 1.00
  • 5th Gear: 0.80
  • 6th Gear: 0.63
  • Reverse: 2.90

    Tremec TUET18132 Tremec GM Magnum XL 6-Speed Transmission:

    The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum’s brute strength and sophistication but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended-length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications.

    • Extension Housing Locates Shifter an Additional 8 in. Rearward from Original Magnums Location (28.46 in. from Face of Bellhousing)
    • Direct Mount Shifter Delivers Great Shift Feel with Short Throws and Smooth Gear Synchronization
    • The Shifter Isolator Dampens Interior Noise and Vibration
    • Capable of 7,800 RPM Shifts
    • Case Material: Aluminum
    • Number of Gears: 6
    • Shifter Included: Yes
    • Yoke Included: No
    • Yoke Style: Slip-on
    • Input Shaft Diameter: 1.125
    • Bellhousing Included: No
    • Approved Fluids:
      • Dexron III Automatic Transmission Fluid (ATF)
      • Mobil 1 ATF
    • The Ultimate Manual Transmission

      Tremec Magnum XL 6-Speed Transmissions have all the performance capabilities and features of the original Magnum Transmissions, but its extended-length tail section eliminates the semi-remote shifter location.
    Part TypeManual Transmission
    Product LineTremec Magnum XL 6-Speed Manual Transmissions
    BrandTREMEC
    Package Height20.5
    Package Width22.5
    Package Length46.5
    Weight200.0 PG
    Part CategoryPerformance Parts
    Number Of Gears6
    Input Spline Quantity26
    QuantitySold individually
    Input Shaft Diameter1.125 in (28.575 mm)
    Part FitmentSemi Universal
    Case MaterialAluminum
    Output Shaft Spline Quantity31
    Vendor Part NumberTUET 18132
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Some parts are not legal for use in California or other states with similar laws / regulations
    p65 warning
