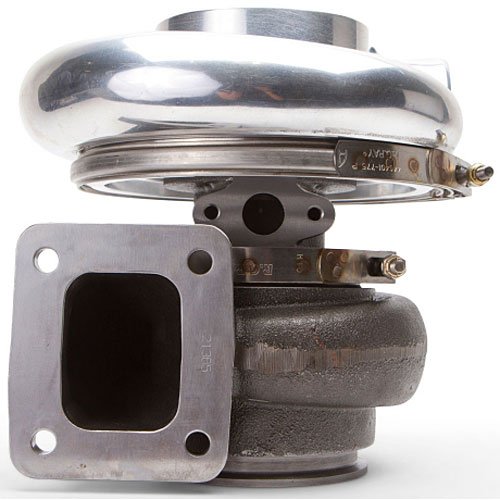

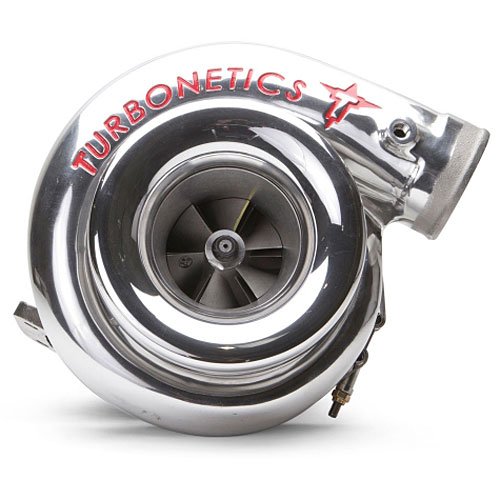

Mid-Frame Turbo Ball Bearing
Product Discontinued
TURBONETICSPART NUMBER: 880-11274

Mid-Frame Turbo Ball Bearing

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Mid-Frame Turbochargers
    Mid-Frame Turbo
  • Ball Bearing
  • Comp Wheel: HP-78
  • Comp Inlet/Outlet: 4.5"/3.0"
  • Turbine Wheel: F1-75
  • Housing T4 1.14 A/R
  • Oil Cooled

    Turbonetics Mid-Frame Turbochargers are the absolute largest units with a T4 Flange. They feature Turbonetics exclusive Ceramic Ball Bearings as standard equipment. These units will meet and exceed the needs of high horsepower racers and crazy street applications. The Mid-Frame compressor side is designed for 72, 76, 78 and 88mm HP wheels. The turbine side is one size up from the T4, using F1-75 turbine wheels. Turbonetics has maintained the T4 inlet flange and uses a 4" outlet on the turbine housing. This makes installation easier by integrating the Mid-Frame turbo with existing hardware. This combination supports 900 to 1500 horsepower, making it the most power you can get from a T4 flange.

Part TypeTurbocharger
Product LineTurbonetics Mid-Frame Turbochargers
BrandTURBONETICS
Package Height18.0
Package Width18.0
Package Length18.0
Weight58.0 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
