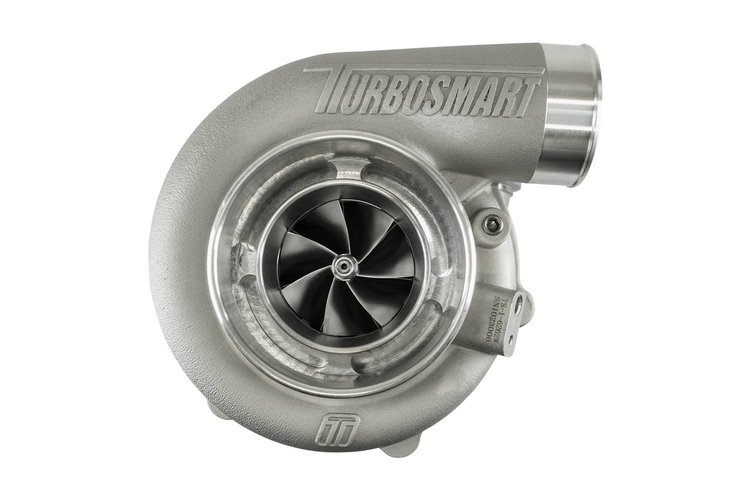

Turbosmart TS-1-5862T3063E Features:

Smaller, Lighter and Faster - The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike.

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminum compressor covers
• CFD driven designed housings for optimal AR's and flow
• Inconel turbine wheel for extreme EGT's
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing
• Compressor Inducer: 58mm
• Compressor Inlet: 4.0 in. / 101.6mm
• Package Contents: (1x) Turbosmart Performance Turbocharger, (1x) Weld Flanges (Turbine outlet), (1x) V-Band Clamps (Turbine outlet), (1x) Oil drain gasket
• Turbine AR: 0.63
• Turbine Exducer: 62mm
• Turbine Inlet: T3
• Turbine Outlet: V-Band (3.00 in.)
• Weight: 6.06kg / 13.3lbs
