Features:

• 38mm valve size
• Popular 2-bolt flange fitting to suit 1.50'' O.D. pipe
• Locking collar for compact size and easy spring changes




  ---

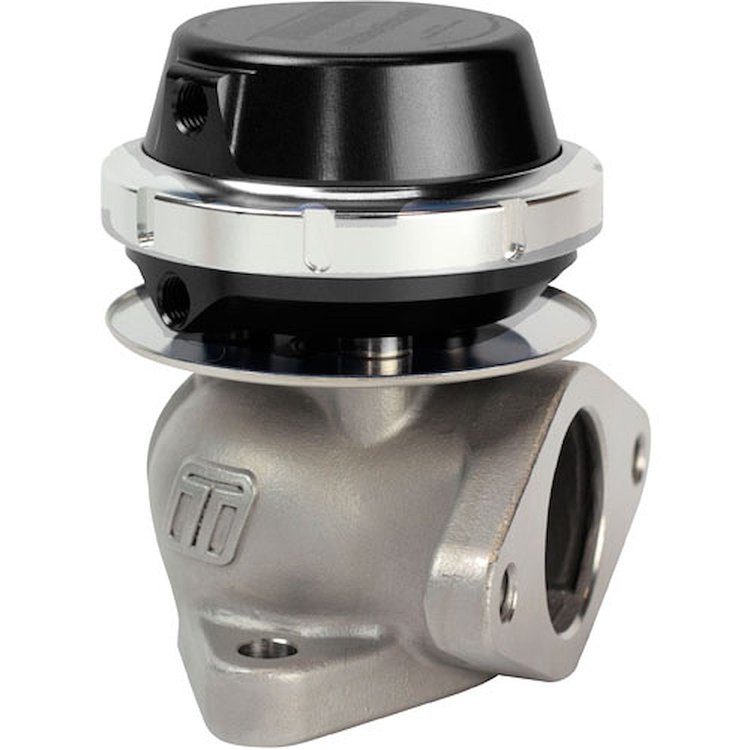

  Ultra-Gate38HP External Wastegate
  The highest pressure external wastegate of its kind in the world. The Ultra-Gate38HP retains the compactness and lightness synonymous with Turbosmart wastegates, specifically for classic 2 bolt flanges (71mm spacing) and the added bonus of being capable of handling high boost pressures. Only 28mm taller than the standard Ultra-Gate38, these wastegates are ideal for all high boost applications. Utilizing their Locking Collar for quick and easy springs changes (Options from 10 to 40 psi available). Features a one-piece Stainless Steel Valve for maximum reliability and our proven Silicon Nomex Diaphragm.
  Supplied With: Gaskets, Mounting Bolts, Locking Collar Tool, Valve Seat, Brown/Orange 10 psi Inner Spring and Brown/Green 25 psi Outer Spring (installed), 1/16'' NPT Hose Barb Fittings (5mm), Port Blanking Plugs.

  Features:
• 38mm valve size
• Popular 2-bolt flange fitting to suit 1.625'' O.D. pipe
• Locking collar for compact size and easy spring changes
• 35PSI standard, 40PSI optional
• Only 28mm taller than standard Ultra-Gate38 wastegate




  ---

  The most common reason for investing in an external wastegate is fitting an after-market turbo or better control of the boost and consequently the power output of your engine. Additionally, most large frame turbochargers are not equipped with internal wastegate systems. Most tuners will recommend an external wastegate for any engine producing 400hp or more, as running high boost through a factory internal wastegate can overpower the actuator spring, limiting maximum boost level. Aftermarket external wastegates feature bigger inlet and outlet ports, higher pressure springs and bigger actuator diaphragms to effectively control high boost pressure. Turbosmart wastegates offer superior flow path and high temperature resistance. They are designed and manufactured using the latest technologies. Turbosmart wastegates are market leaders in their sectors, outperforming and outlasting the competition.
