TURBOSMARTPART NUMBER: 911-TS-0565-1762

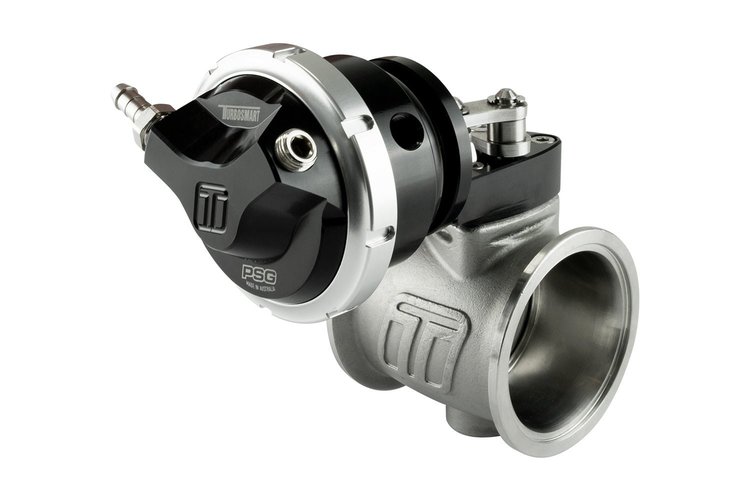

Pneumatic StraightGate50 (PSI-Based) 6 psi. External Wastegate
$75149
1 left in stockItems You Need
Boost-Based
Pneumatic StraightGate50 External WastegatePsi-Based Actuator Installed 6-psi Spring Straight-Through Design 50 mm Butterfly-Style Zero-Offset Valve 383.9 cfm Flow Single or Twin Port Boost-Based Control V-Band Mounting Black
Data, Dimensions, and Included Items
Turbosmart TS-0565-1762 Pneumatic StraightGate50 External Wastegate Features:
- Self-Balancing Zero-Offset Butterfly Valve
- Wide Range Tuning Window of Over 5 Times Base Spring Pressure
- Withstands 2372 Degrees Fahrenheit EGT
- 360 Degree 60mm V-Band Fitment
- Clock-Able Billet Actuator, Bracket
- Collared Cap for Adjustment
- Stainless Steel Butterfly and Shaft, Main Body, V-Band Clamps, Linkages, and Control Arm
- Aluminum Bracket and Actuator
- Silicone Nomex Diaphragm
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
High-Flowing, Controllable Pneumatic External Wastegates
Turbosmart Pneumatic StraightGate50 External Wastegates increase flow and efficiency with a straight-through design and zero-offset butterfly valve.
Part TypeTurbocharger Wastegate
Product LineTurbosmart Pneumatic StraightGate50 External Wastegates
BrandTURBOSMART
Package Height5.4
Package Width6.8
Package Length8.5
Weight4.445 PG
Wastegate Base FinishNatural
Wastegate Top Cap MaterialAluminum
QuantitySold individually
Wastegate TypeExternal
Wastegate StyleMechanical
External Wastegate Relief Diameter (Mm)50
Wastegate Top Cap FinishBlack anodized
Wastegate Base MaterialCast stainless steel
Vendor Part NumberTS-0565-1762
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
