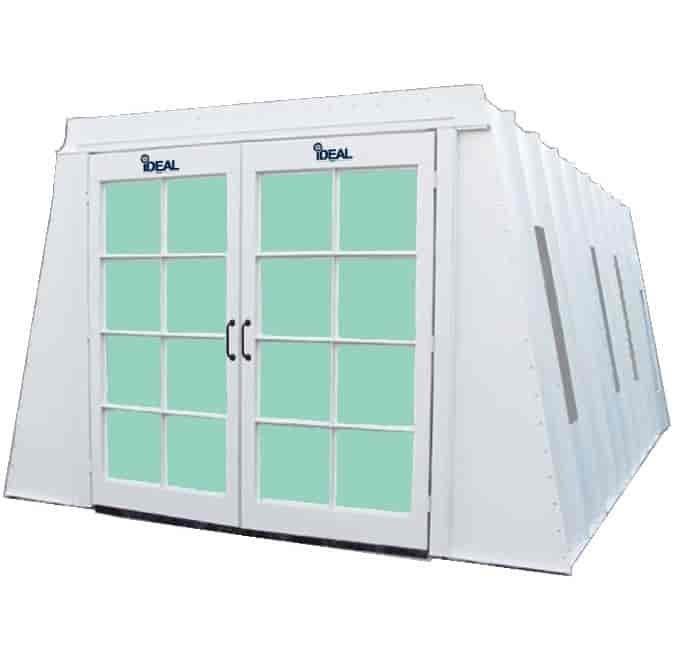

Crossflow paint booths pull in filtered from the booth front and push out filtered exhaust air at the rear, providing plenty of ventilation while working inside.

Features

• Side downdraft airflow style
• Personnel door with window for viewing.
• Heavy-duty 18-gauge precision-cut
• Durable white powder-coated finish inside and outside
• Lighting provided by (6) High-quality LDPi Industrial Lighting UL Listed light fixtures with (4) bulbs per fixture (Light Bulbs Included)
• Optimum lighting provided by the tilt panel design
• High-quality Air Filtration Co. intake and exhaust filters
• NEMA rated Dayton tube axial fan with spark resistant aluminum blades
• Fan powered by 3 HP single-phase 230 volts AC-60 Hz motor
• Rammstein Air deluxe control panel UL Lister
• Installed by 5/16 in. nuts and bolts
• Includes filters, lights, and fan

Specs

• Inside Dimensions: 22 1/2 ft. Length x 13 ft. Width x 8 1/2 ft. Height
• Outside Dimensions: 25 ft. 4 in. Length x 13 ft. 4 in. Width x 8 ft. 10 in. Height
• CFM: 9,500 at 0.5 static pressure
