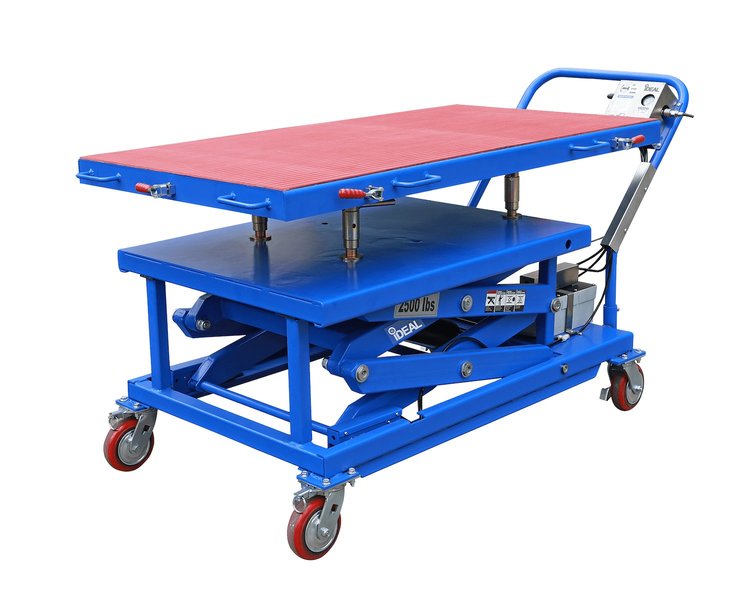

LT-EV2500AH-X Hybrid Component Lift Table

Name: LT-EV2500AH-X Hybrid Component Lift Table
Brand: TUXEDO
SKU: 905-LT-EV2500AHX
Price: 5140.00 USD
Availability: InStock

^$5,140⁰⁰

Ships on 09/09/2026

Lowest Price Guarantee

Specifications: Capacity: 2,500 lbs
Overall Length: 74.6”
Overall Width: 35.4”
Max EV Platform Height: 72.6”
Min EV Platform Height: 35.4”
Hand Bar Height: 39.2”
EV Platform Size (L x W): 59” x 31.5”

Tuxedo LT-EV2500AH-X Features:
2,500 lbs capacity
Innovative, high quality portable scissor lift design
Efficient & safe method to install or remove heavy EV or hybrid vehicle components ie: battery packs, motors & powertrain assemblies
Full operation air system hand controls for lifting, locking & lowering
Compressed air/hp hydraulic operation (90 to 125 psi)
Integrated air gauge with water separator
Insulated, multi-directional sliding EV platform with 6ea adjustable latch clamps
HD jack screws for precision ‘tilt & height’ platform adjustments
Double scissor HD design with HQ hydraulic cylinder
Integrated utility/tool tray & sub-platform storage area
Durable ‘directional & locking’ 6" poly swivel casters
EV platform size 59'L x 31.5"W
3ea locking height positions
Max PT platform height 72.6"
Min PT platform height 35.4"
Overall size 74 6°L x 35.4'W
725 rise & 335 lower time
Includes 4ea rubber pads (6.4'L x 4'W x 1.45°H)
Durable powder-coat finish

Part TypeVehicle Lift and Accessory

BrandTUXEDO

Part CategoryAccessories

Vendor Part NumberLT-EV2500AH-X

Package Qty1

Package TypeEA
