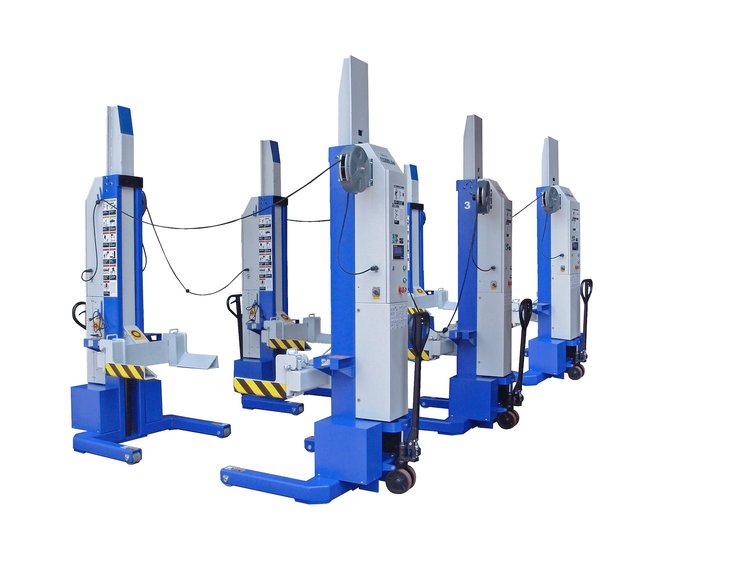

MSC-13K-B-678 Mobile Single Column Lift

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Specifications: Column Configurations: 6 Column
Capacity: 78,000 lbs
AC Power (Input
Per Column): 100-140VAC
60Hz
1 PH
DC Power (Output
Per Column): 24VDC
Lifting Height: 67.1″

Tuxedo MSC-13K-B-678 Features:
Easy to use master controller for individual or paired synchronized operation
Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
Adjustable lifting forks accommodate the widest range of wheels
Easily positioned with pallet jack style wheel
Heavy-duty hydraulic system
Large carriage bearings provide durable, fast and easy lifting
LCD screen with keyboard offers easy to read visuals of settings and lifting height
Independent mechanical locking system
Emergency switch on each column provide highest safety assurance
Optional jack stands available

Part TypeVehicle Lift and Accessory

BrandTUXEDO

Part CategoryAccessories

Vendor Part NumberMSC-13K-B-678

Package Qty1

Package TypeEA
