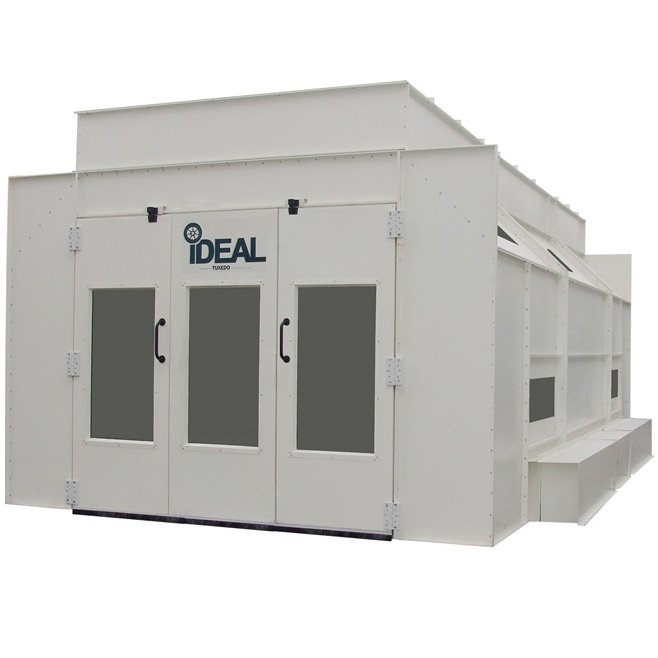

Side downdraft paint booths pull in filtered from the ceiling and filter out the exhaust air through the bottom of the sidewalls, providing a pressurized downdraft airflow.

Features

• Side downdraft airflow style
• Commercial-grade heavy-duty 18-gauge precision-cut panels
• Hip roof design provides shadow-free lighting
• Durable white powder-coated finish inside and outside
• Lighting provided by (10) High-quality LDPi Industrial Lighting UL Listed light fixtures with (4) bulbs per fixture (Light Bulbs Included)
• High-quality Air Filtration Co. intake and exhaust filters
• (2) 8 ft. chimney exhaust stacks
• Tri-fold doors with viewing windows
• (2) NEMA rated Dayton tube axial fans with spark resistant aluminum blades
• Fans powered by 2 HP three-phase 230 volts AC-60 Hz motor
• Rammstein Air deluxe control panel UL Lister
• Installed by 5/16 in. nuts and bolts
• Includes filters, lights, and fans

Specs

• Inside Dimensions: 26 ft. Length x 14 ft. Width x 9 ft. 3 in. Height
• Outside Dimensions: 26 ft. 4 in. Length x 17 ft. 8 in. Width x 9 ft. 5 in. Height
• CFM: 14,000 at 0.5 static pressure

Note: Ductwork not included, images shown with optional canopy plenum (not included)
