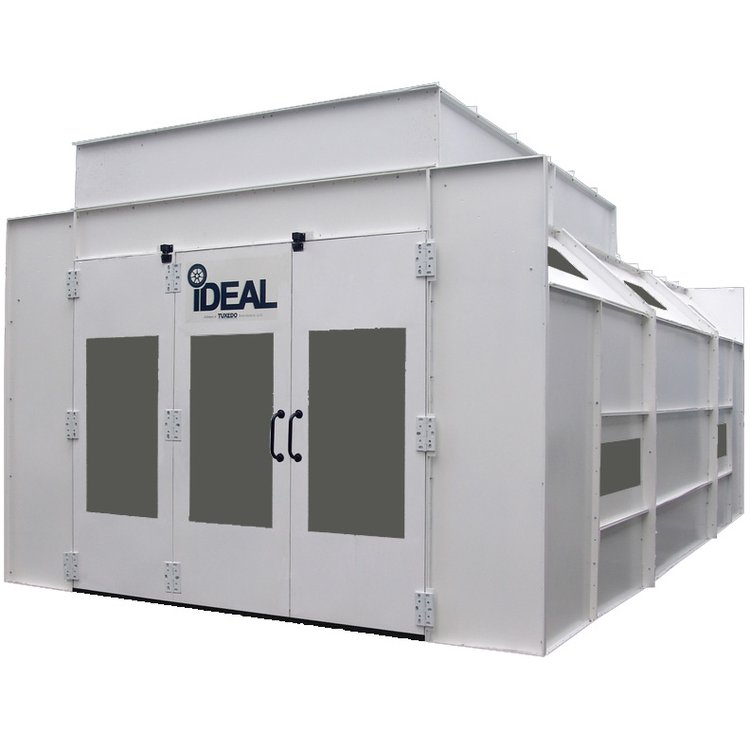

iDEAL Paint Booth [Semi Downdraft | 3-Phase 230 Volt]

Name: iDEAL Paint Booth [Semi Downdraft | 3-Phase 230 Volt]
Brand: TUXEDO
SKU: 905-SEMIDD26B3PH
Price: 24950.00 USD
Availability: InStock

^$24,950⁰⁰

Truck Freight

Ships Tomorrow

Free shipping

Lowest Price Guarantee

Semi Downdraft

iDEAL Paint Booth

Semi Downdraft

(1) 30 in. Axial Fan 3 HP

3-Phase 230 Volt

12,220 CFM

(10) T-8 Light Fixtures

Semidowndraft paint booths pull in filtered from the ceiling and filter out the exhaust air through the back of the booth, providing a pressurized downdraft airflow.

Features

Side downdraft airflow style
Commercial-grade heavy-duty 18-gauge precision-cut Hip panel design
Durable white powder-coated finish inside and outside
Lighting provided by (10) High-quality LDPi Industrial Lighting UL Listed light fixtures with (4) bulbs per fixture (Light Bulbs Included)
High-quality Air Filtration Co. intake and exhaust filters
Tri-fold doors with viewing windows
NEMA rated Dayton tube axial fan with spark resistant aluminum blades
Fan powered by 3 HP three-phase 230 volts AC-60 Hz motor
Rammstein Air deluxe control panel UL Lister
Installed by 5/16 in. nuts and bolts
Includes filters, lights, and fan

Specs

Inside Dimensions: 26 ft. Length x 14 ft. Width x 9 ft. 3 in. Height
Outside Dimensions: 29 ft. 4 in. Length x 14 ft. 4 in. Width x 9 ft. 7 in. Height
CFM: 12,220 at 0.5 static pressure

Note: Ductwork not included, images shown with optional canopy plenum (not included)

Painting Automotive Projects with Ease

Tuxedo iDeal paint booths are manufactured to commercial-grade for quality you can count whether your a business owner or a hobbyist. These paint booths are engineered to let in lots of light without creating shadows so the painter can see clearly any areas they missed or need to cover. All Tuxedo paint booths feature powder-coated 18-gauge panel construction, UL Listed light fixtures, Dayton tube axial fan, and air filtration on the intake and exhaust size. When you need a premium spray booth for your painting needs, look no further than Tuxedo.

Part TypeShop Tools

Product LineTuxedo iDEAL Paint Spray Booths

BrandTUXEDO

Package Height64.0

Package Width91.0

Package Length121.0

Weight675.0 PG

Part CategoryAccessories

Part FitmentUniversal

Vendor Part NumberPSB-SEMIDD26B-3PH-230V-AK

Package Qty1

Package TypeEA
