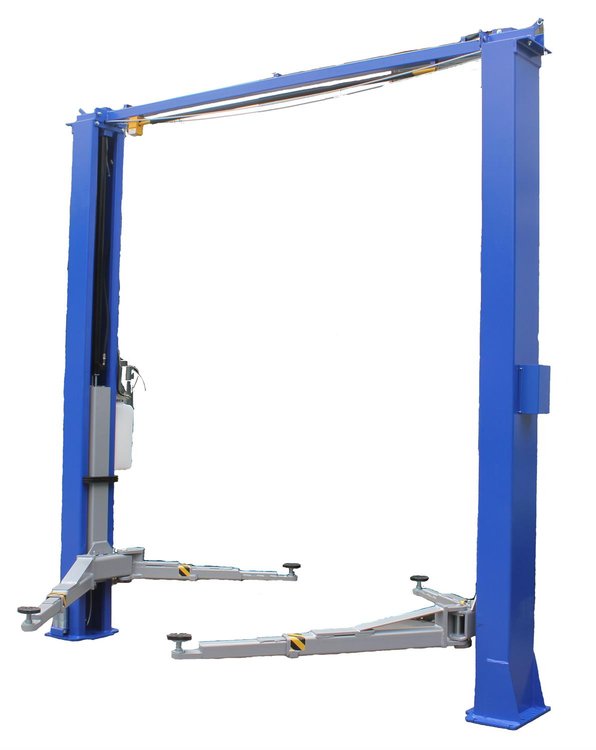

Features:

• MET UL/CSA certified DURO hydraulics power unit
• Bi-symmetrical arms for asymmetric of symmetric lifting
• 3-stage adjustable front swing arms with 180 degrees of rotation
• Direct drive pull-style cylinders
• Single-point lock release
• Durable powder-coated finish
• 1-piece column construction
• Padded top bar with a shut-off kill switch

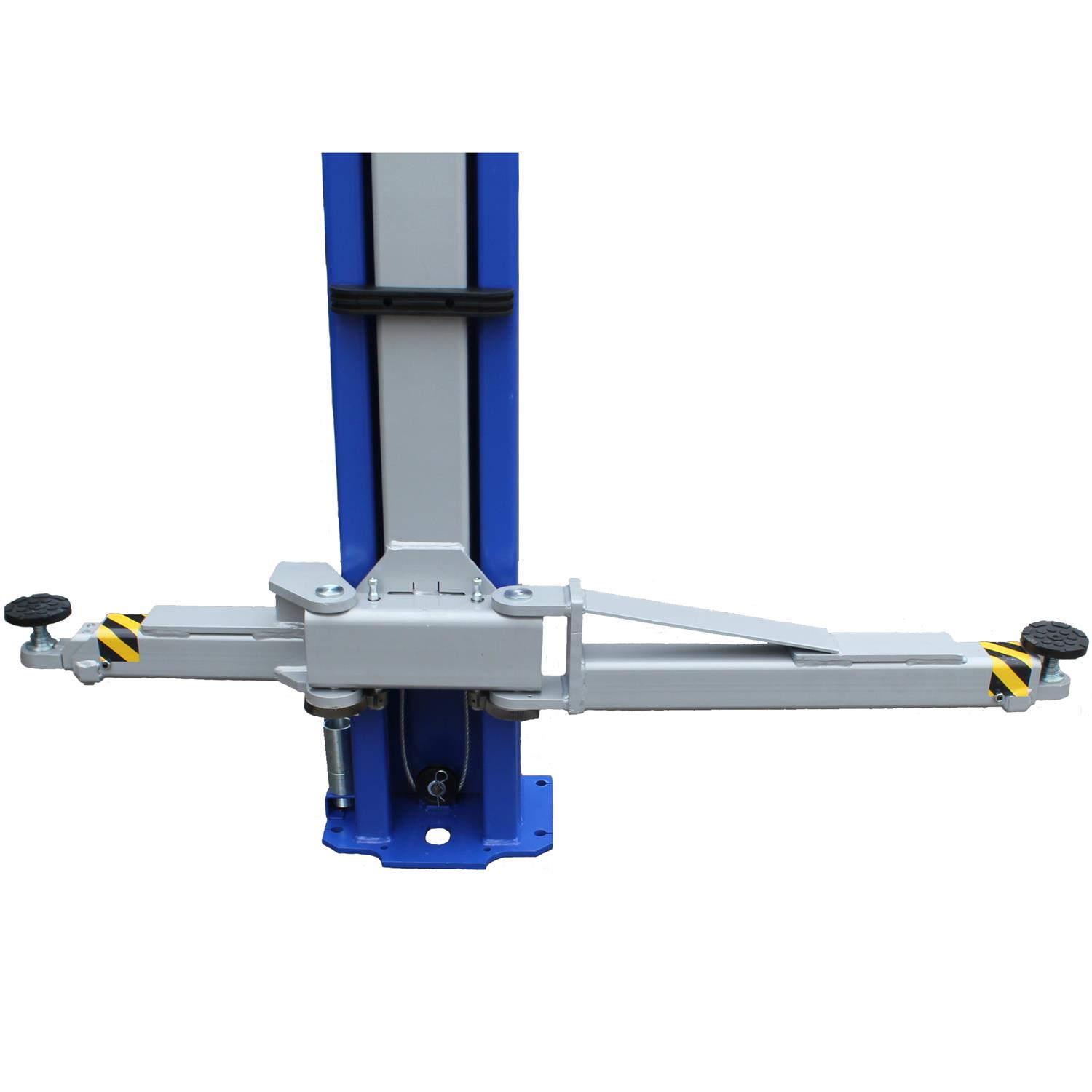

• Low-profile swing arm with drop-in 2 3/8 in. adjustable height swivel pads
• Includes 2 in. and 4 in. stackable height adapters
• The power unit is mounted on the front side to reduce the overall width
• External hose guards
• Rubber guards on columns to protect the vehicle's doors

Specs:

• Lifting Capacity: 11,000 lbs.
• Overall Height: 144 in.
• Maximum Lifting Height: 71 in.
• Minimum Pad Height: 4 in.
• Overall Width: 145.500 in.
• Width Between Columns: 116 in.
• Drive-Thru Clearance: 104 in.
• Lifting Speed: 50 seconds
• Power: 220 V, 20 Amps, 1 PH
• Weight as Shipped: 1,705 lbs.
