Features:

• Power unit with overhead safety shut-off wire mechanism
• Chain drive hydraulic cylinders
• Dual point lock release
• Durable powder-coated finish
• 1-piece column construction
• Includes a pair of saddle pad adapters

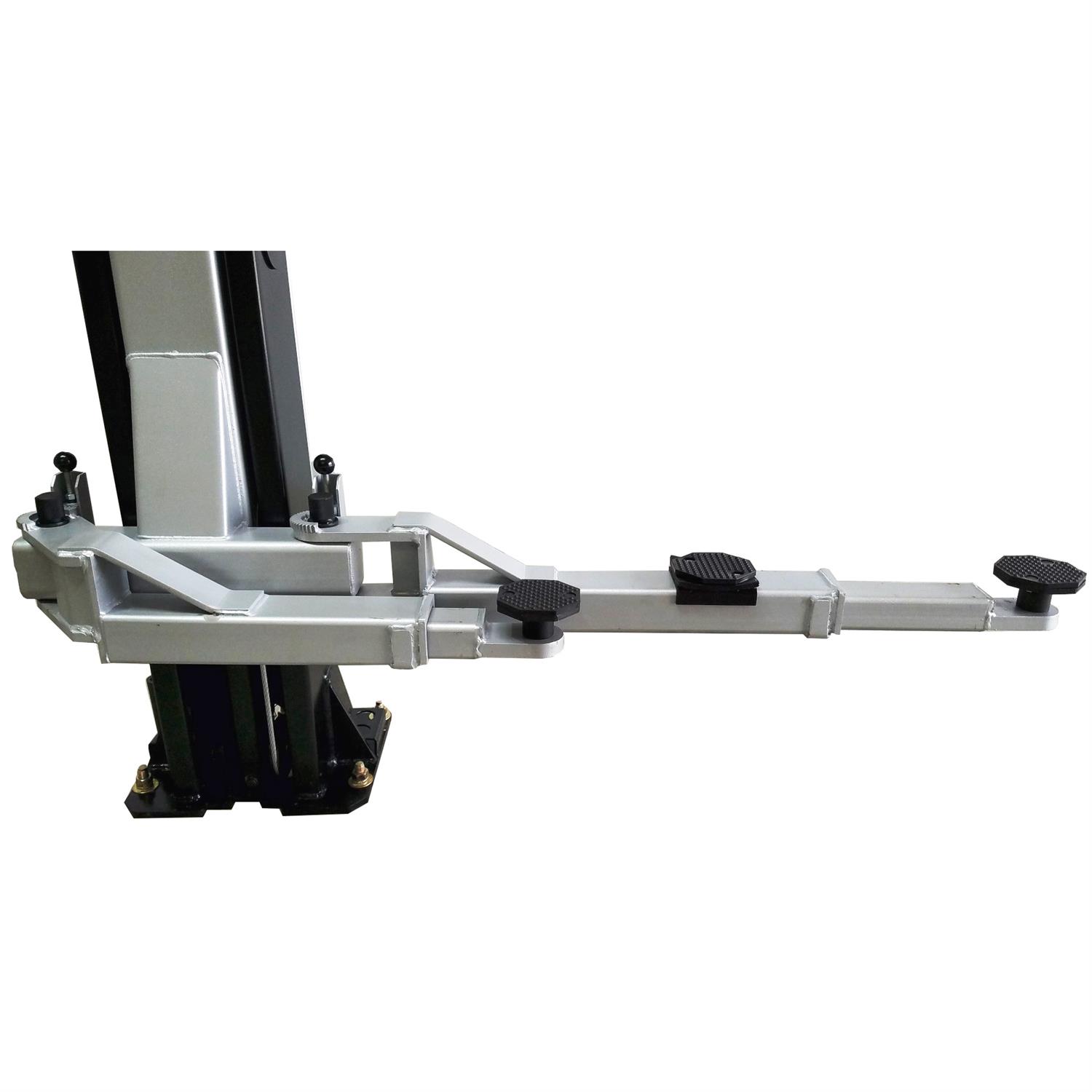

• Low-profile swing arm design
• Low-profile design drop-in style lift pads and saddle pad adaptors
• Includes 1 5/16 in. and 5 in. stackable height adapters
• Automatic arm restraints

Specs:

• Lifting Capacity: 9,000 lbs.
• Required Ceiling Height: 144 in.
• Overall Height: 142.700 in.
• Maximum Lifting Height: 72 in.
• Minimum Pad Height: 4 in.
• Overall Width: 141 in.
• Width Between Columns: 110.400 in.
• Drive-Thru Clearance: 93.700 in.
• Lifting Speed: 50 seconds
• Short Arm Reach Minimum: 28.500 in.
• Short Arm Reach Maximum: 41.400 in.
• Long Arm Reach Minimum: 37.100 in.
• Long Arm Reach Maximum: 57.200 in.
• Maximum Load Per Arm: 2,250 lbs.
• Power: 220 V, 20 Amps, 1 PH
• Weight as Shipped: 1,390 lbs.
